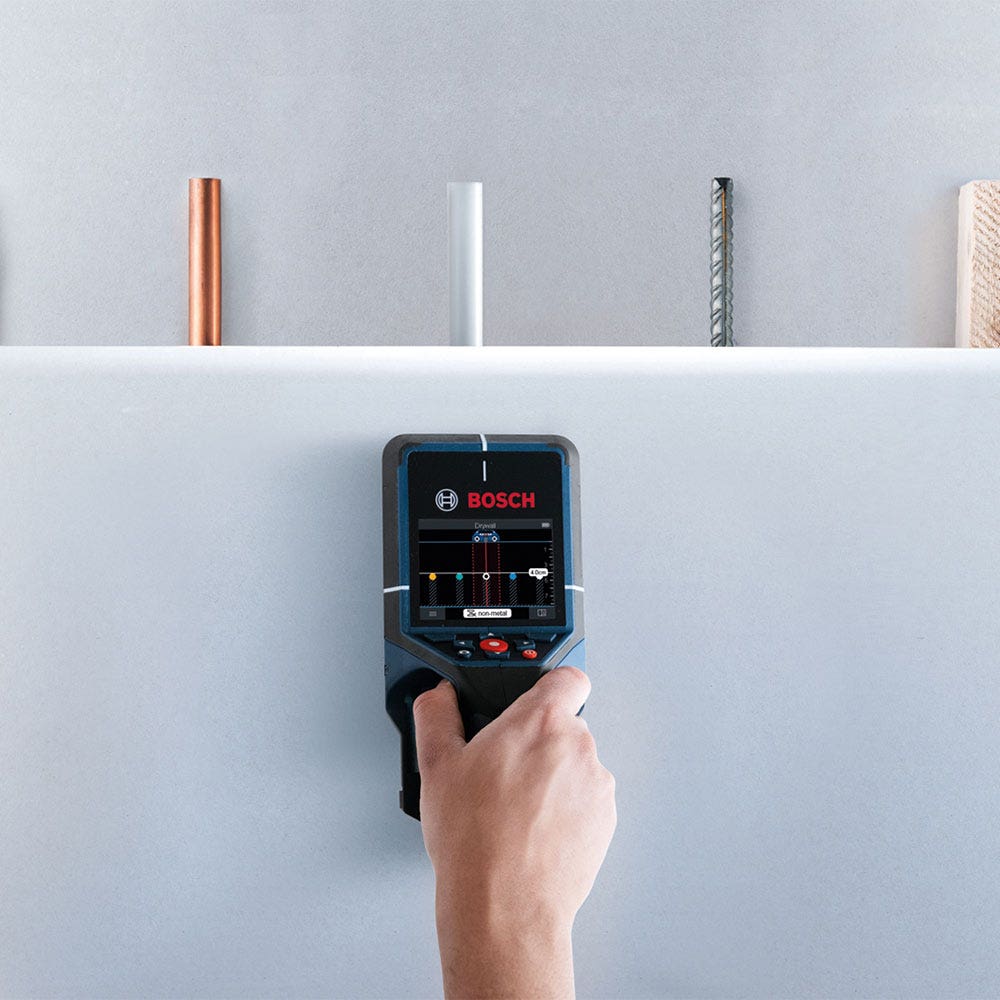

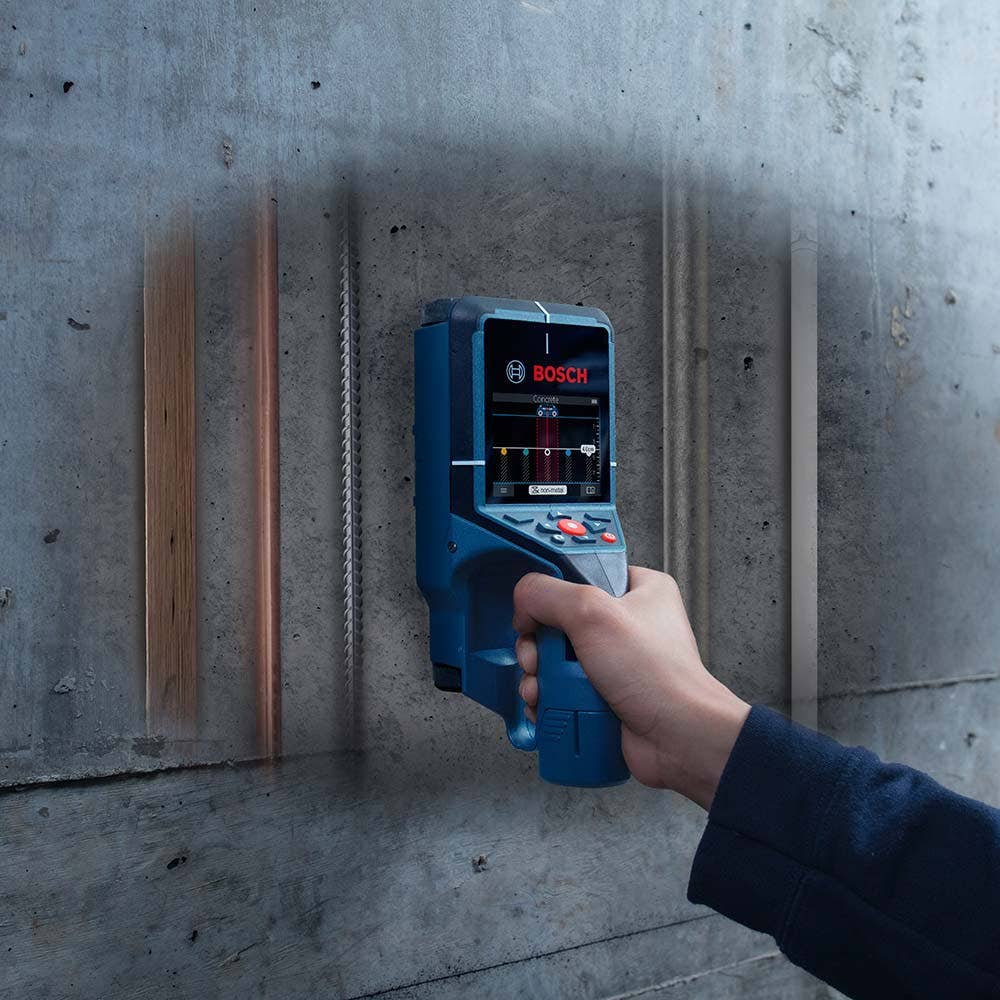

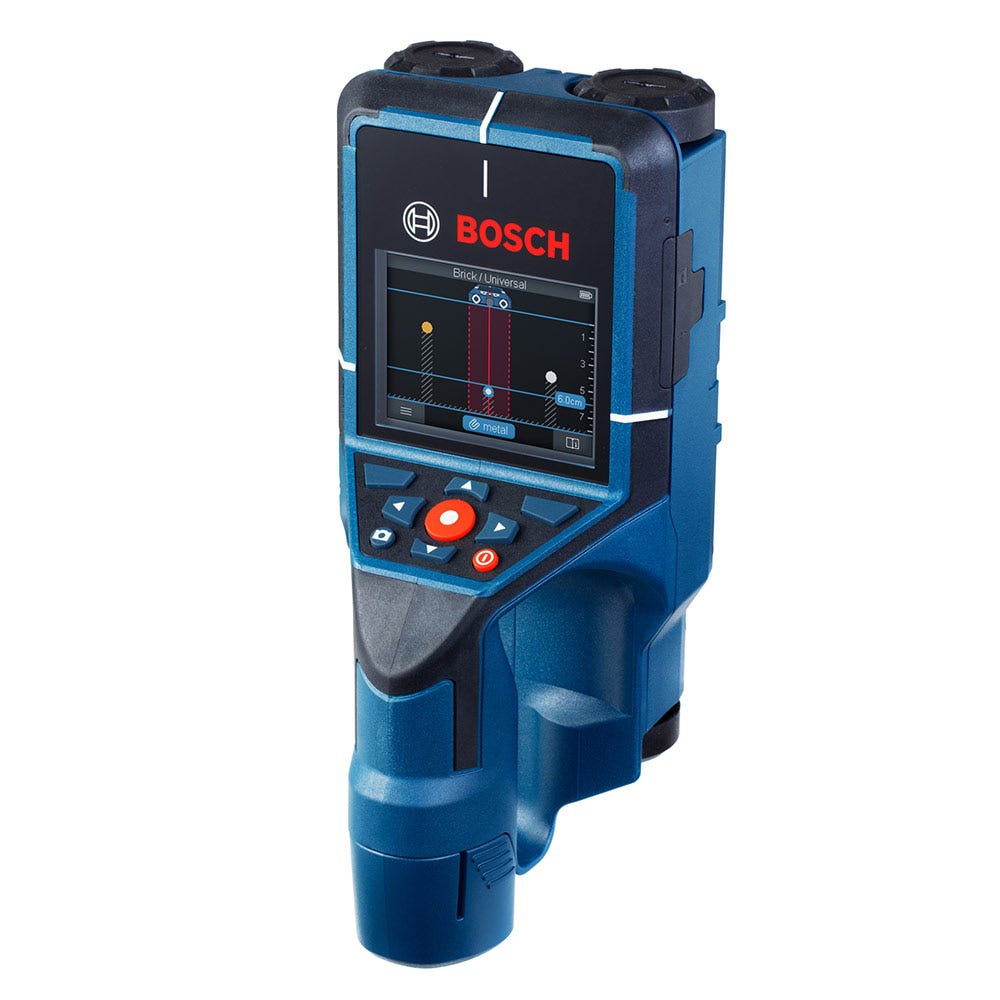

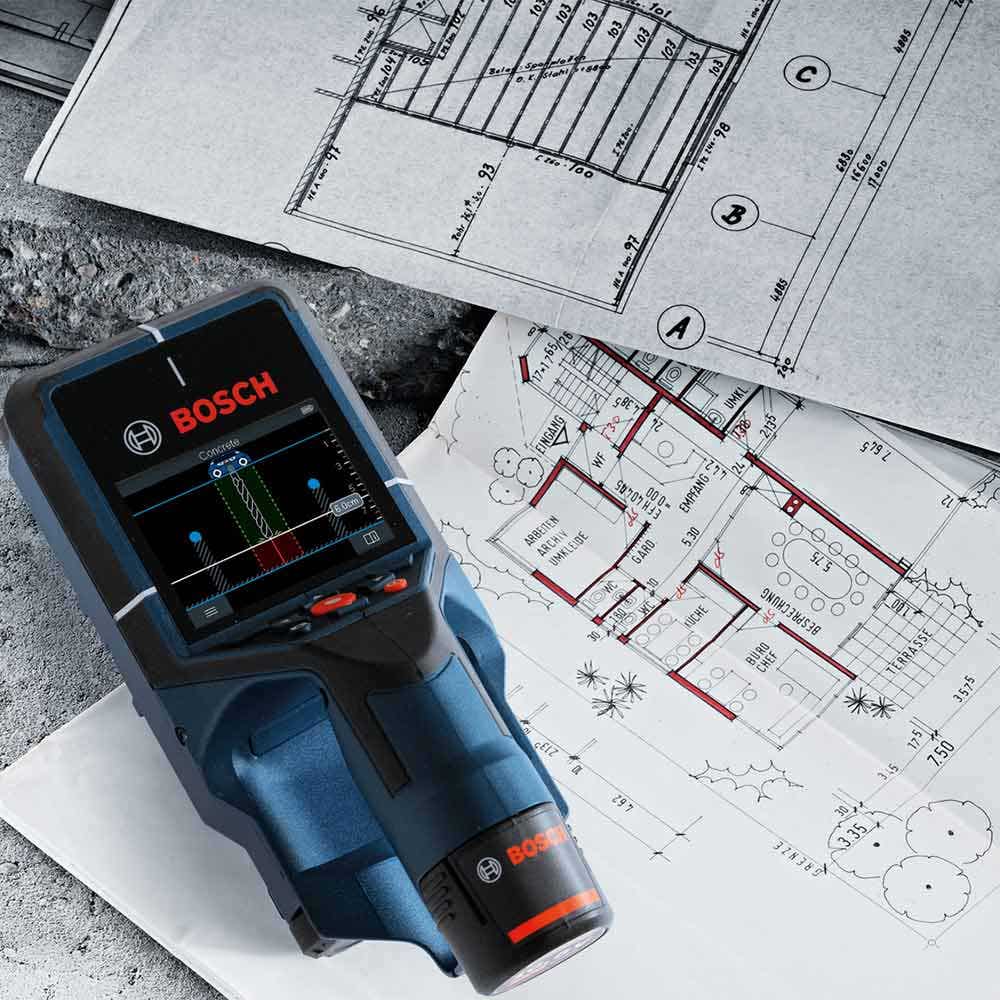

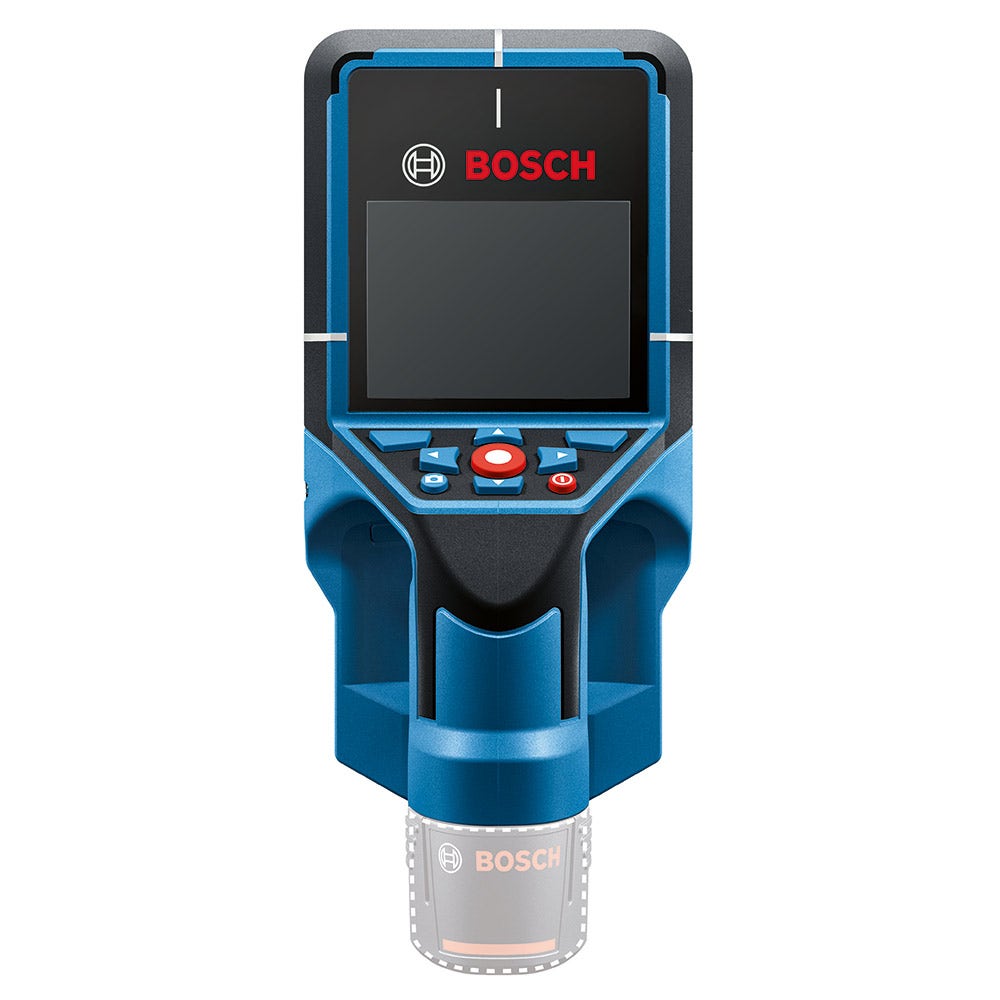

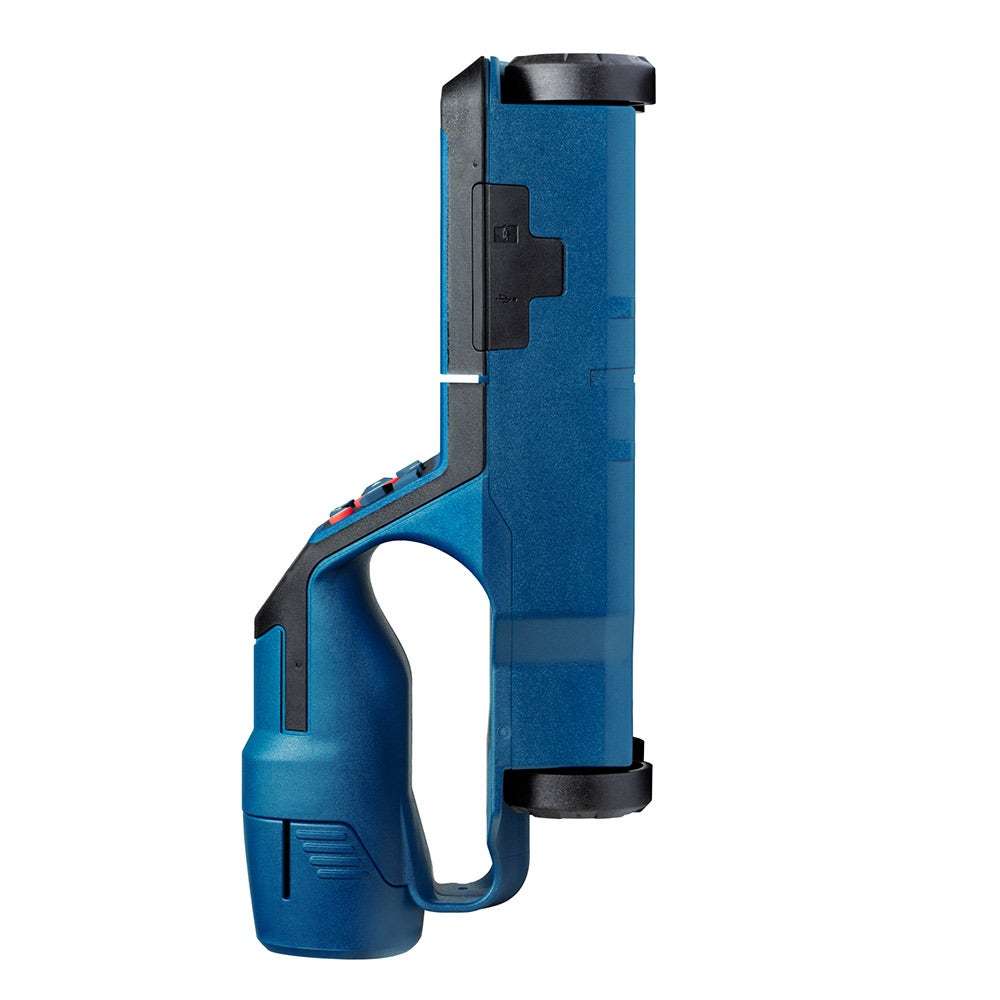

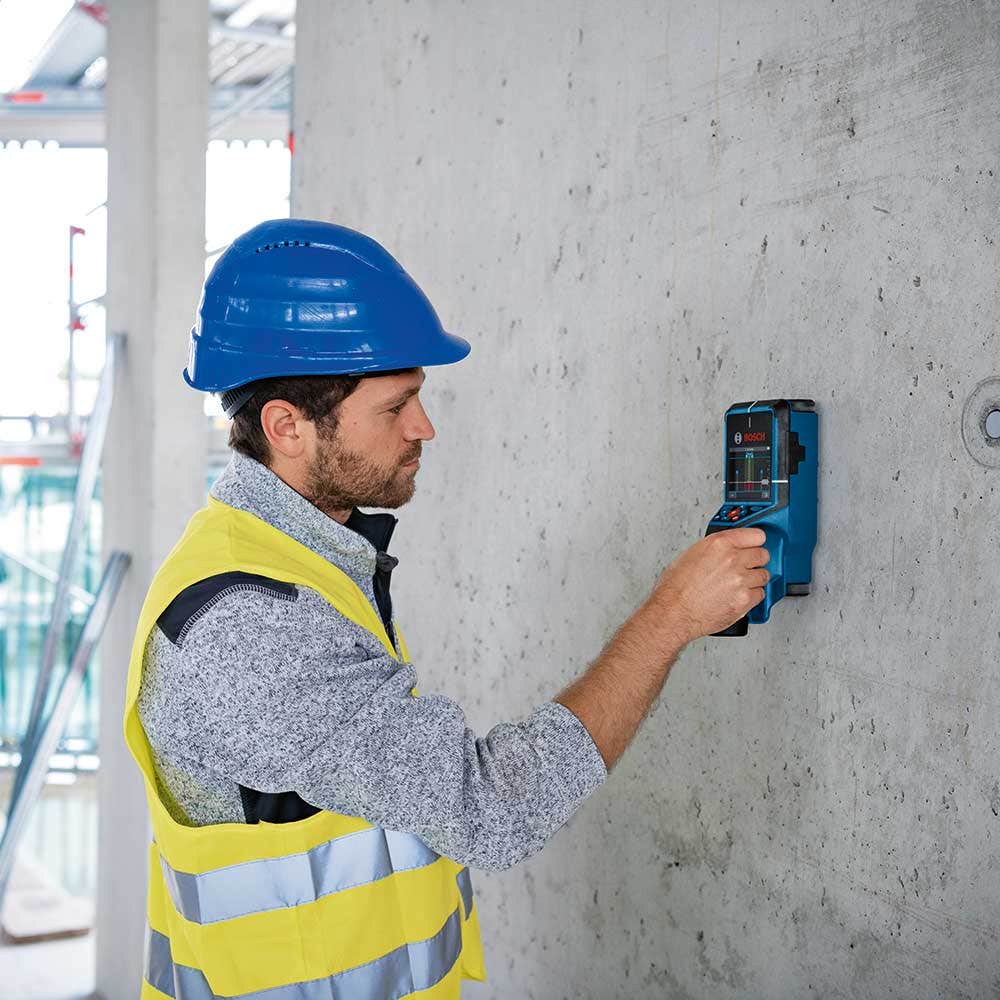

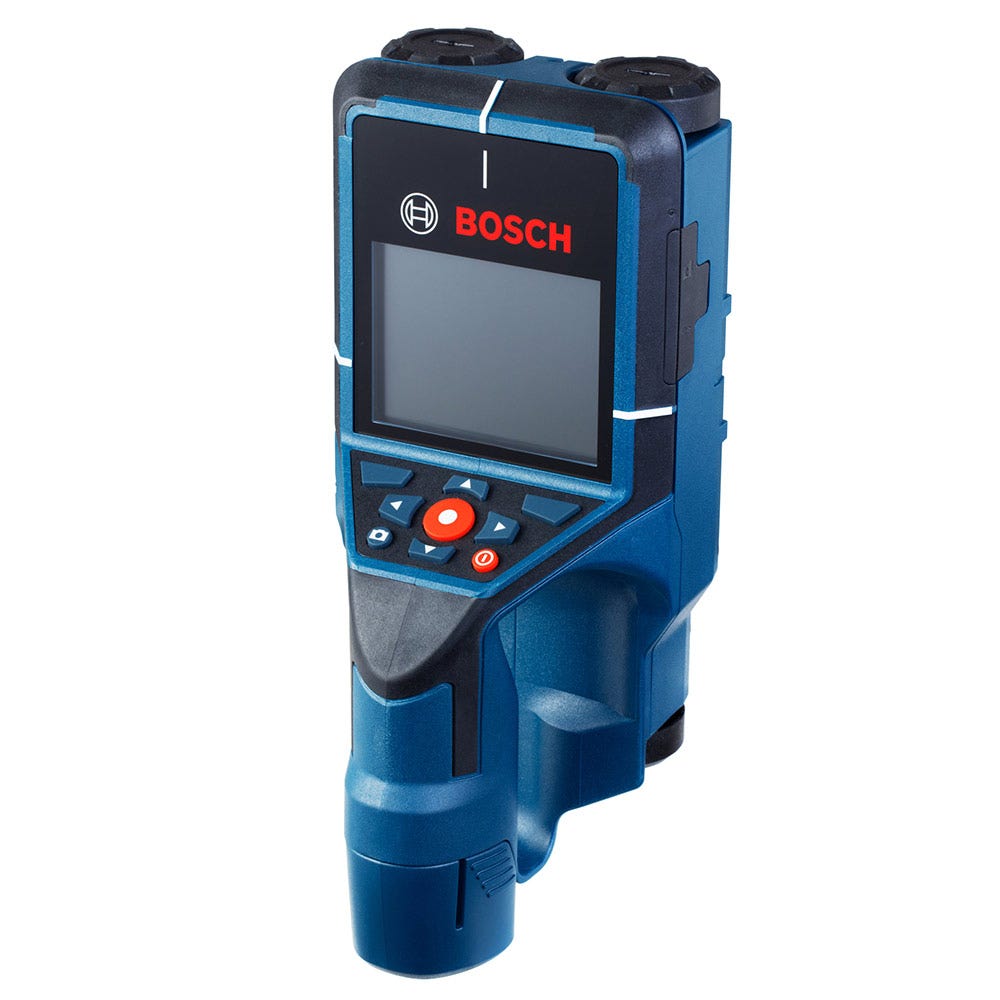

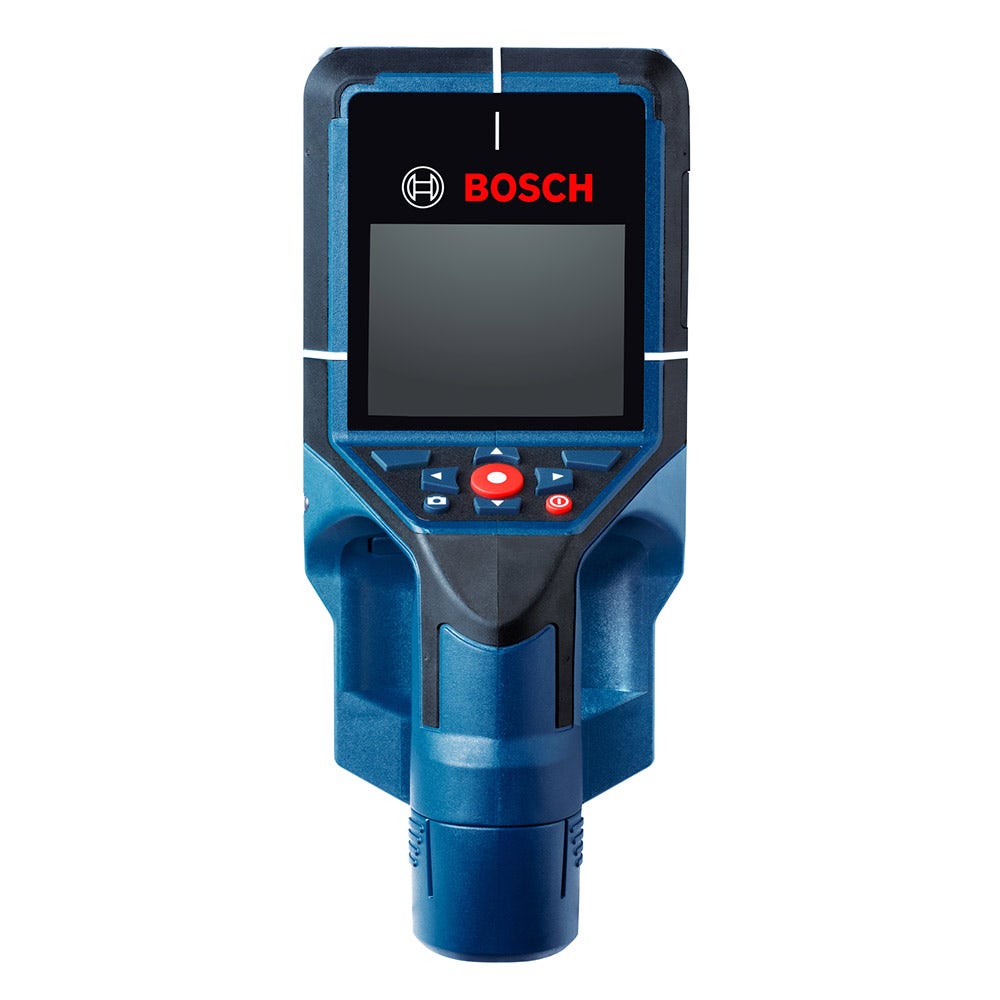

Universal wall detector and scanner BOSCH 200 mm 06010816K0

Description

Description

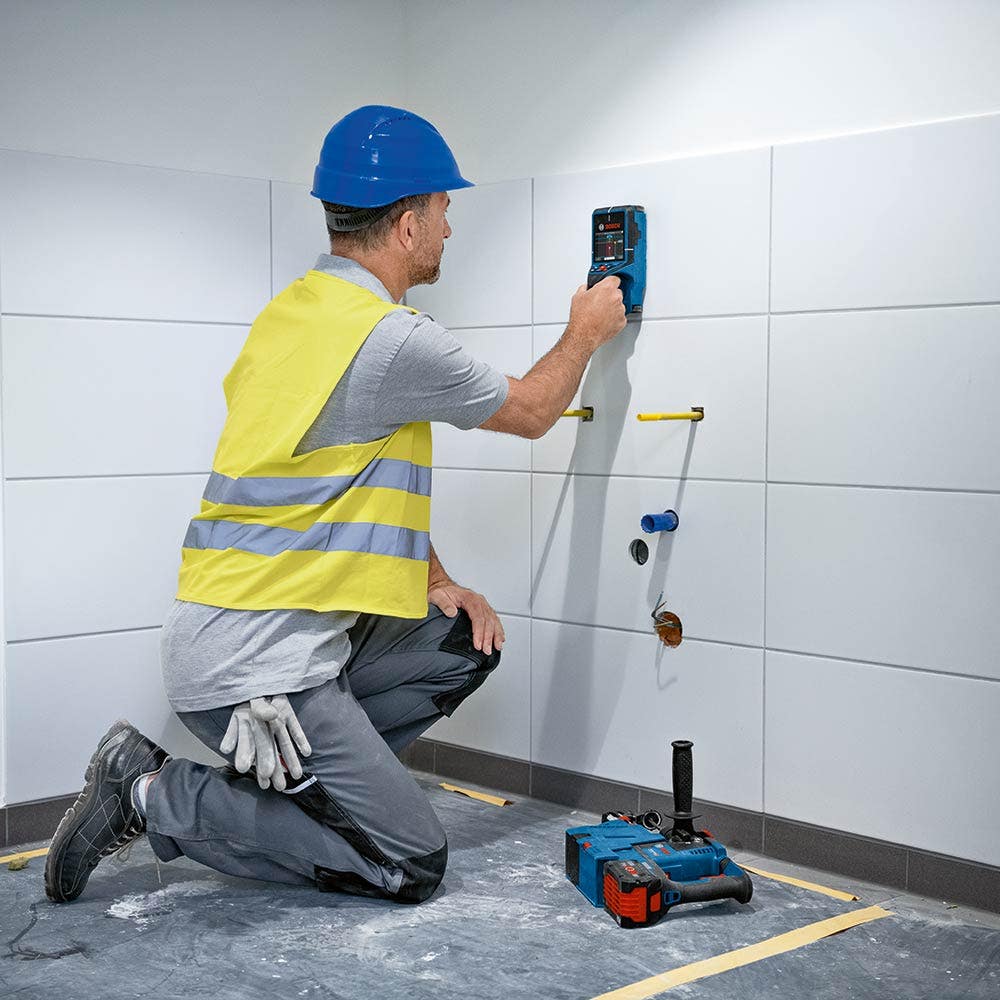

The D-tect 200 Professional detects all common objects and clearly illustrates them, while also facilitating documentation. Equipped with Bosch radar technology and an improved HMI, it ensures safer and more precise detection. Multiple view options allow for ideal use in various situations, such as a spot view that facilitates detection in hard-to-reach places. The detector enables instant documentation, allowing data transfer via USB-C or MicroSD card.

• Greater depth for greater safety - increased maximum detection depth of up to 200 mm with object depth indication

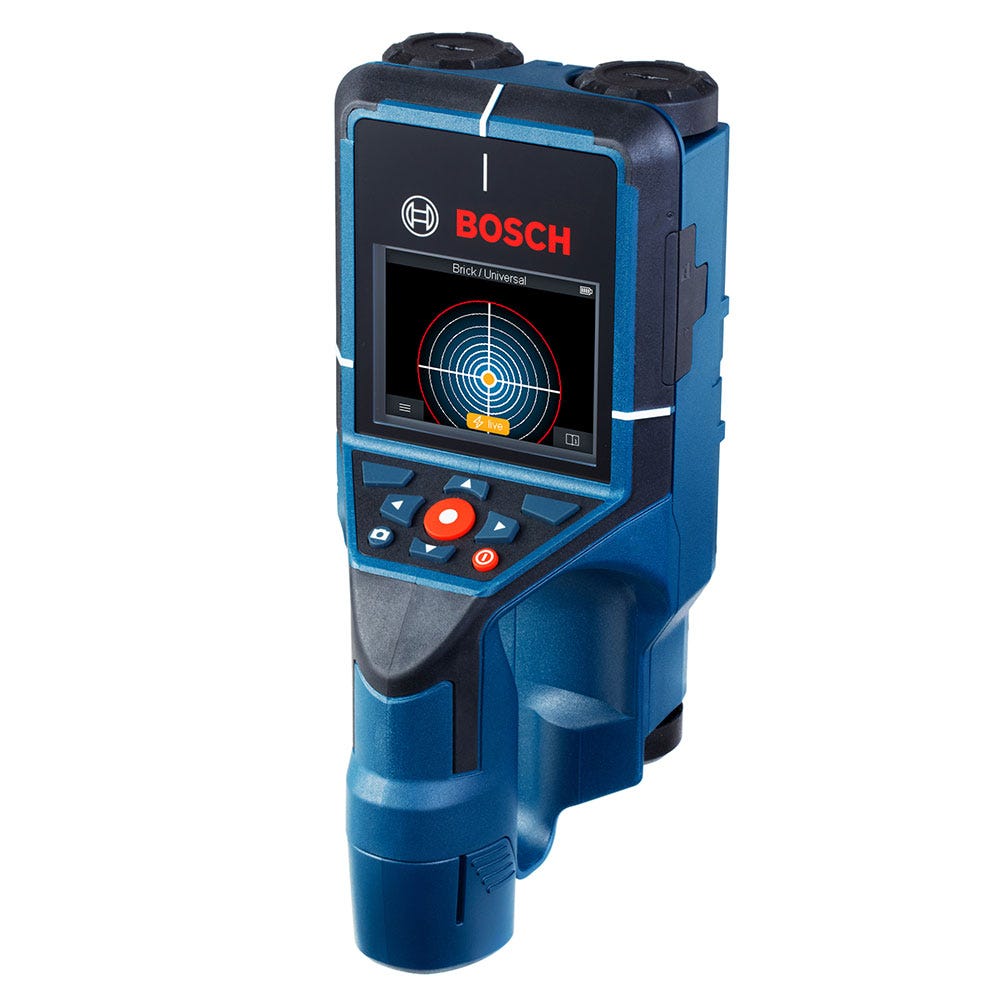

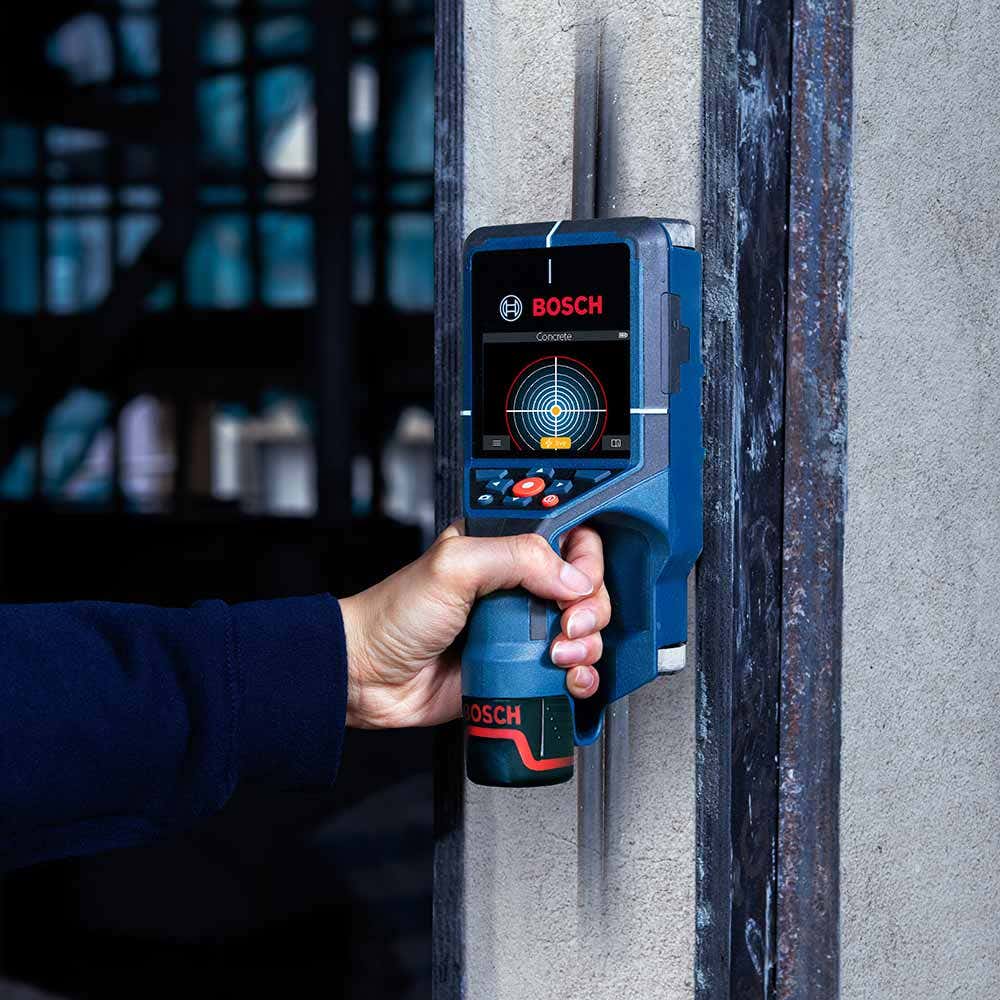

• Versatile detection - detects all common objects, even in narrow spaces thanks to the unique spot mode
• See the invisible - clear visualization of detected objects, including the new leak detection function via the intuitive HMI
• Professional power tools for construction, woodworking and metalworking from Bosch
• Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage and data cables (three-phase cables, cavities), non-live cables, wooden underground structures, water-filled plastic pipes, empty plastic pipes

Technical data

• Max. Detection depth: 200 mm
• Detection depth:

  • Dry concrete, max. 200 mm
  • Early aged concrete, max. 60 mm
  • Other wall types, max. 80 mm
  • Magnetic metal, max. 200 mm
  • Non-magnetic metal, max. 80 mm
  • Live cables, max. 80 mm
  • Wooden substructures, max. 38 mm
• Accuracy: ±5 mm
• Views: object view, point view, signal view, 2D signal view
• Wall types: concrete, early concrete, plasterboard, brick/universal, horizontally drilled brick, Vertically drilled brick, panel heating
• Dust and splash protection: IP 5X

Includes

• 1 x AA1 alkaline battery adapter
• 4 x 1.5V LR6 (AA) batteries
• 1 x USB-C cable
• 1 x wrist strap
• 1 x case
