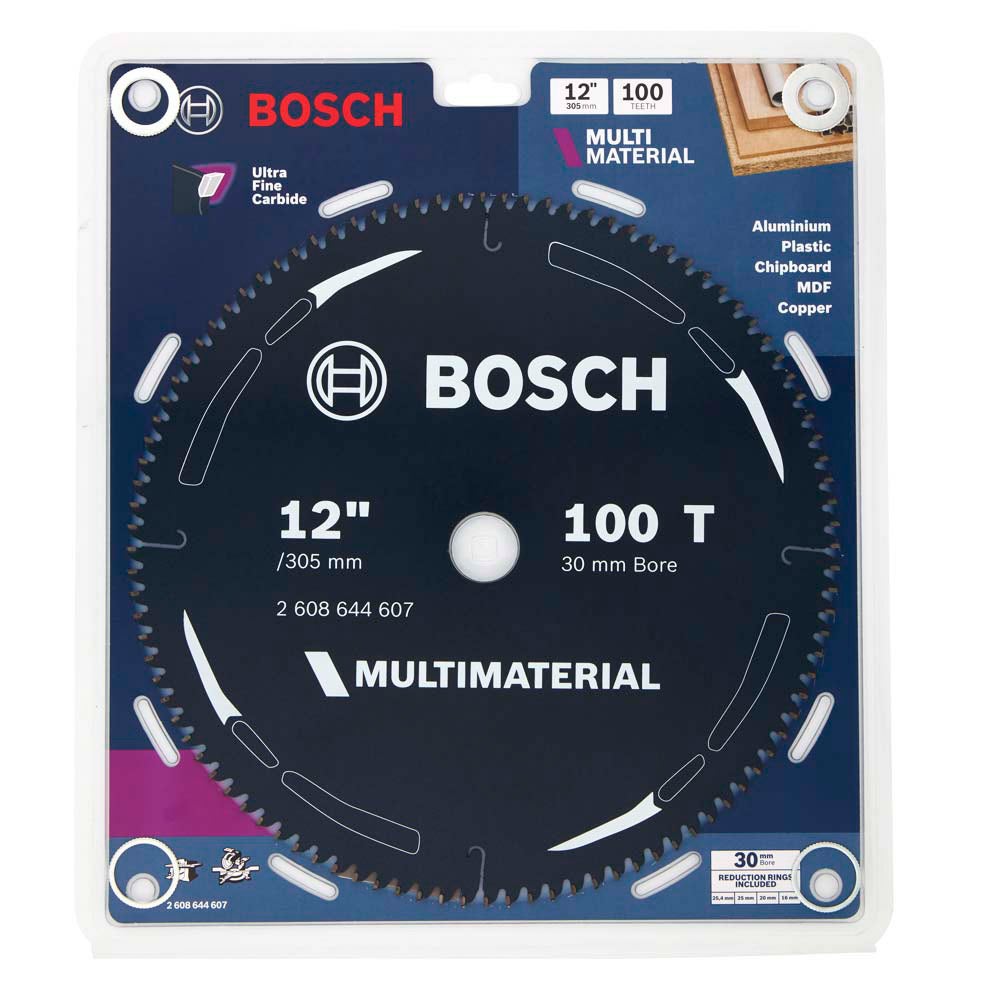

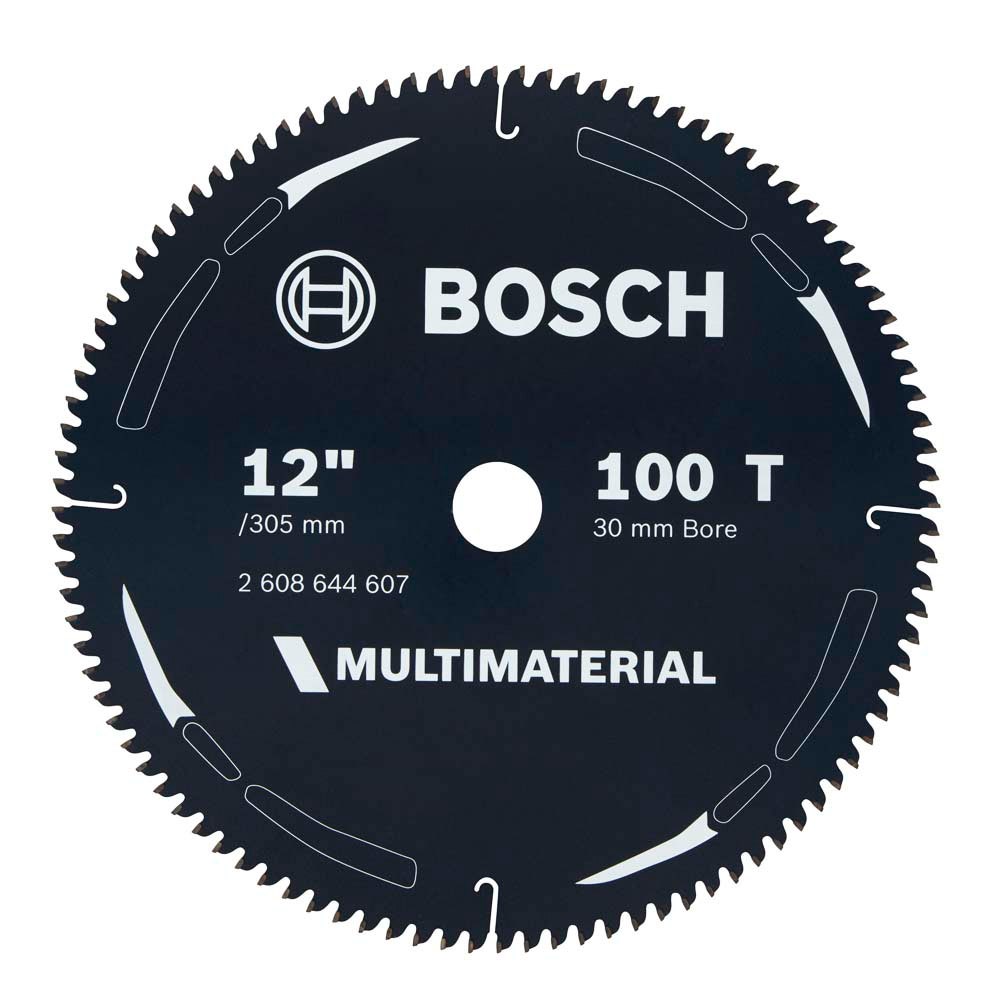

BOSCH 305 mm 100T TCT Circular Saw Cutting Disc for Multi-Purpose Cutting - MULTIMATERIAL

Description

Description

BOSCH MULTIMATERIAL Circular saw cutting discs ensure exceptionally clean cuts in aluminum, plastics and epoxy resins, chipboard and MDF.

MULTIMATERIAL have precisely ground teeth made of high-quality cemented carbide. The teeth are mounted on a hardened steel body with optimized negative rake angle geometry, ensuring exceptional cutting quality and long tool life.

They also feature a fully functional PTFE (polytetrafluoroethylene) coating. This coating reduces friction and heat during cutting, extending the blade's life. An additional benefit is that it protects the blade body from corrosion.

Features

• Functional PTFE blade coating - reduces friction during cutting and reduces gumming of the blade body
• Fully ground teeth - ensures clean and smooth cuts
• Negative tooth geometry with triple chip grind - allows cutting of non-ferrous metals and the design prevents clogging
• High quality cemented carbide - ensures long blade life
• Hardened steel body - allows precise and stable cuts

Technical data

• Blade diameter: 305 mm (12")
• Bore diameter: 30 mm
• Cut thickness: 2.7 mm
• Plate thickness: 2.0 mm
• Number of teeth: 100T
• Tooth Hook Angle: -5°
• Tooth Configuration: HLTCG (High-Low Triple Chip Grind)

Safety Information

• Maximum RPM: 5000
• Recommended Personal Protective Equipment:
• Safety Glasses
• Safety Gloves
• Hearing Protection
• Respiratory Protection

Material Suitability

• Aluminum and other non-ferrous metals
• Plastics and Epoxy Resin
• Particles Board
• MDF

Includes

• Reduction rings (x4):
• 30 mm to 25.4 mm (1")
• 30 mm to 25 mm
• 30 mm to 20 mm
• 30 mm to 16 mm

Specifications

Specifications

Specifications

Brand	Bosch
Part Number	2608644607
Barcode	3165140966153
Blade Diameter	305 mm
Bore	30.0 mm
Cut Thickness	2.7 mm
Plate Thickness (mm)	2 mm
Number of teeth	100
Tooth hook angle (°)	-5
Tooth configuration	HLTCG
