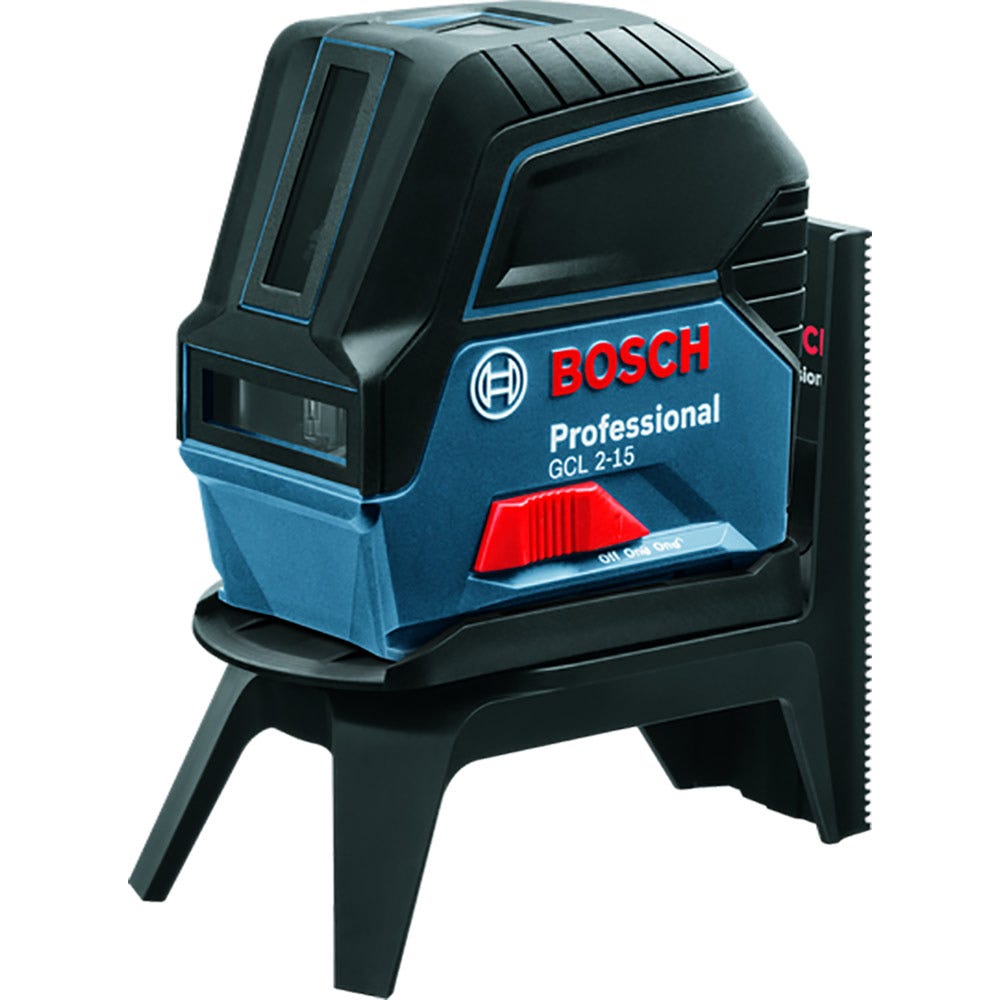

BOSCH GCL215 Laser Cross Line Measure 0601066E02

Description

Description

Compact and versatile for all levelling applications at short distances

• Horizontal and vertical laser lines and two centered plumb points with optimal visibility
• Laser lines can be aligned around centered plumb points

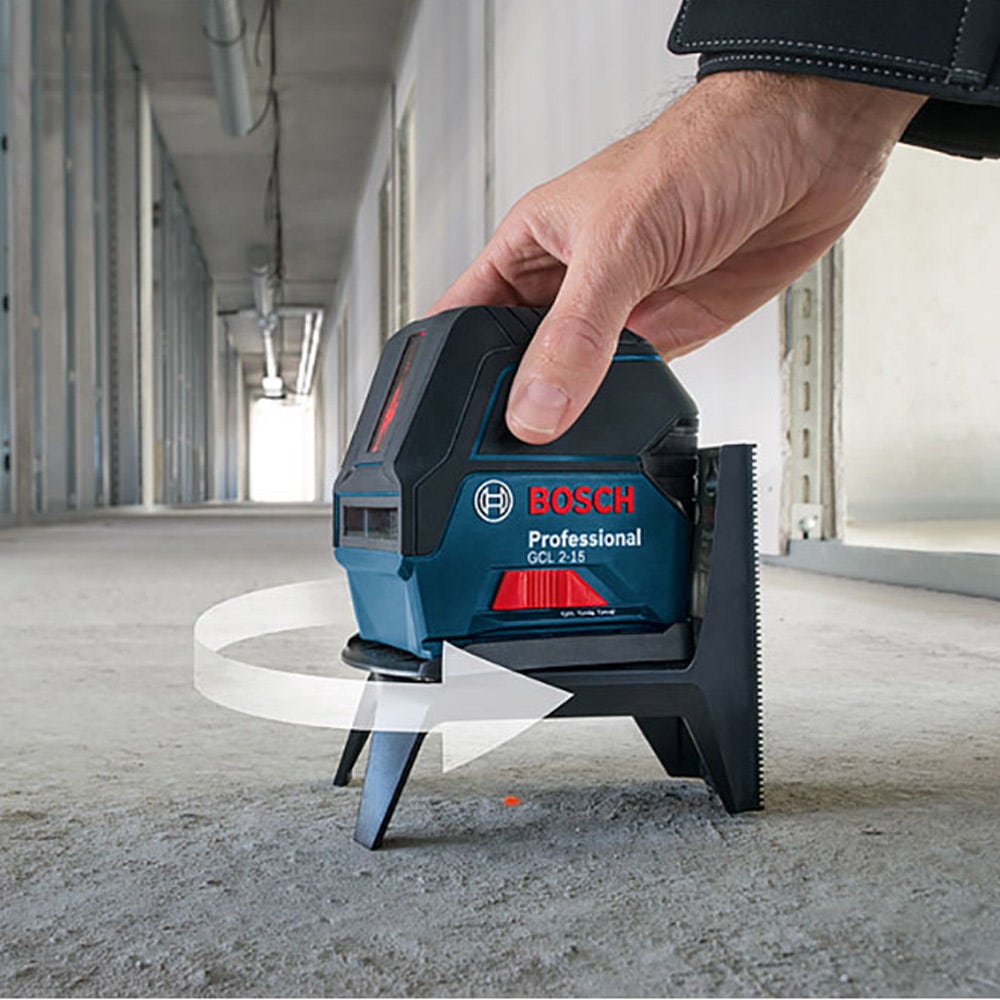

• Flexible in use thanks to the rotating RM 1 Professional multifunction handle for aligning the laser lines and versatile tool mounting
• Pendulum lock for safe transport
• Easy to use thanks to one-handed operation and intuitive user interface
• Selectable line and point mode
• Self-leveling horizontally and vertically for ±4°

Technical data:

• Laser diode: 630 – 650 nm, < 1 mW
• Operating temperature: -10 – 50 °C
• Storage temperature: -20 – 70 °C
• Working range of laser points, max.: 10 m (top), 10 m (bottom)
• Self-leveling range: ± 4°
• Leveling time: 4 s
• Power supply: 3 x 1.5 V LR6 (AA)
• Operating time (max.):
  • 6 h in cross and spot mode
  • 8 h in cross mode
  • 12 h in line and spot mode
  • 16 h in Linear mode
  • 22 h in dot mode
• Tripod thread: 1/4 inch, 5/8 inch
• Projection: 2 lines / 2 points
• Plumb point accuracy: ±0.7 mm/m
