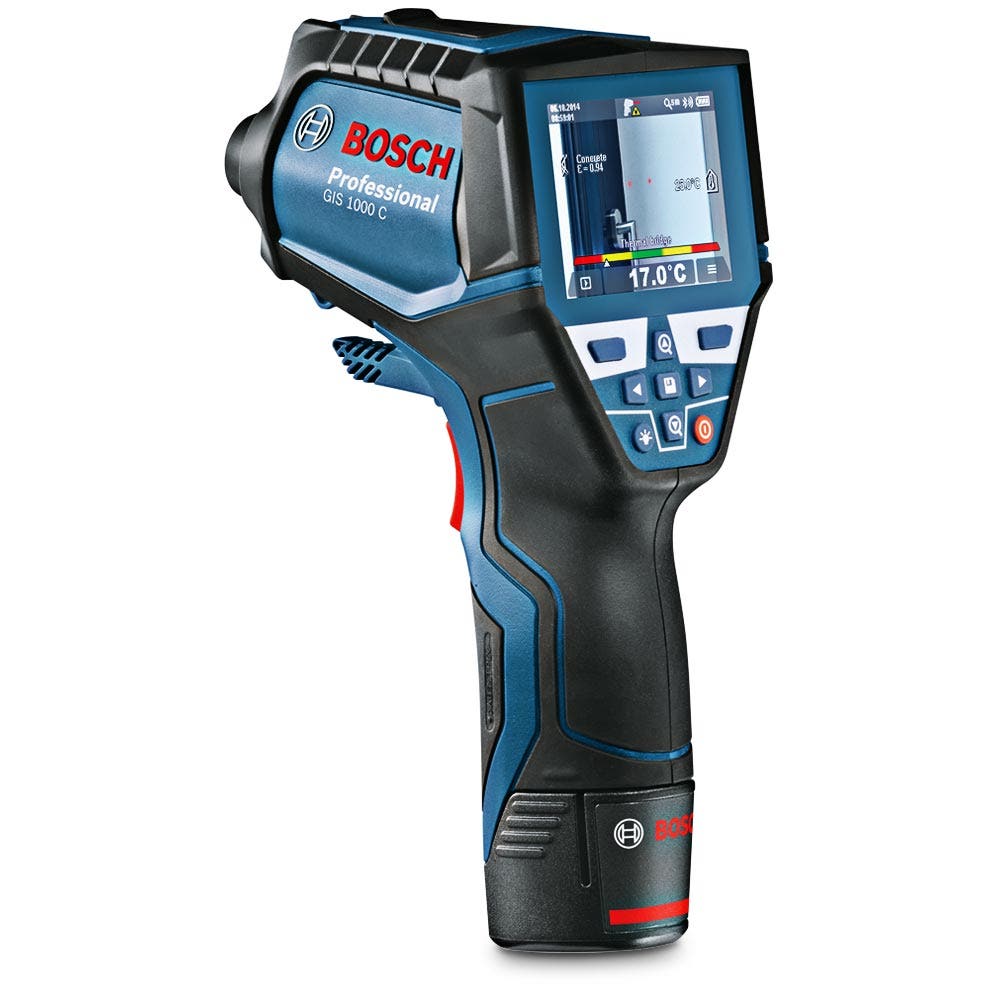

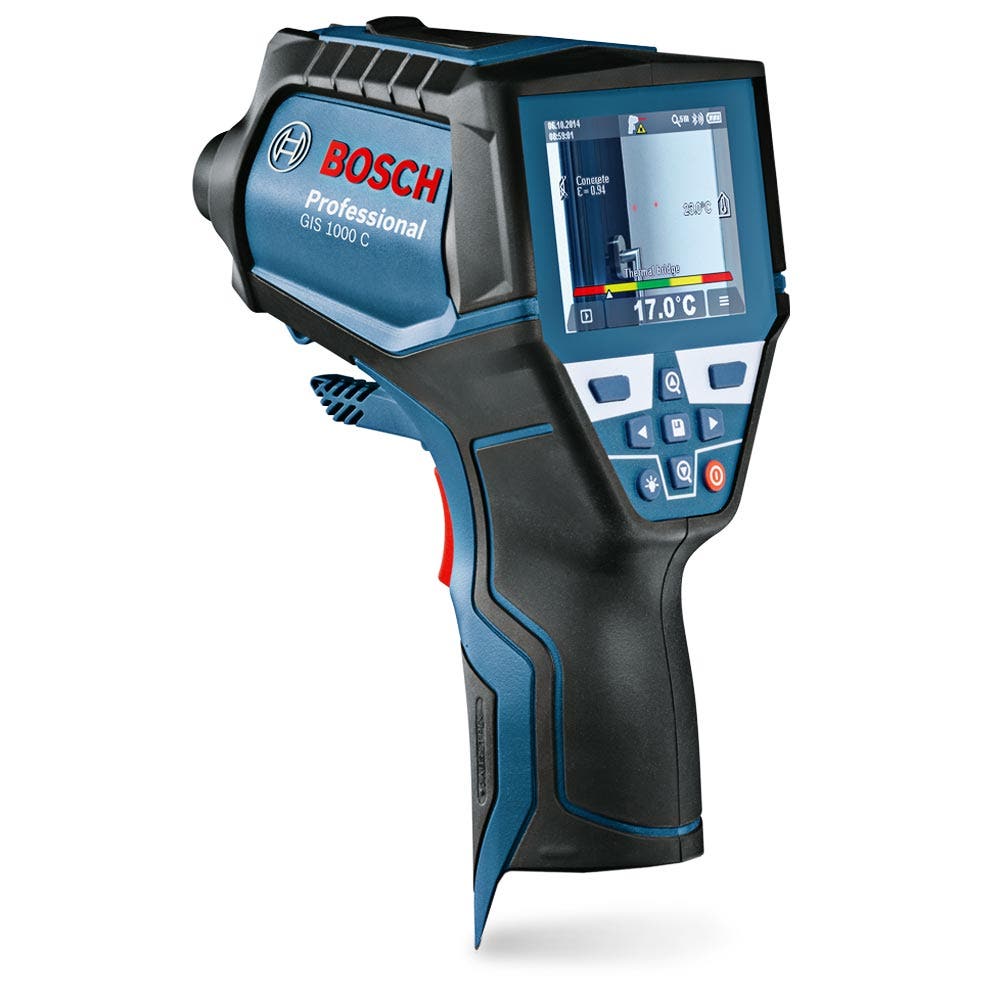

BOSCH GIS1000C Infrared Laser Scanner

Description

Description

• Accurate measurement and recording of surface temperature and ambient conditions

• The integrated camera immediately shows and documents measured values in images

• Transmits data via Bluetooth with the Measuring Master app, making it easy to store and share high-quality documentation

• Dual power source technology allows the use of both a 12 V lithium-ion battery and standard alkaline batteries

Technical data

• Measuring range: -40 °C … +1000 °C
• IR measurement accuracy: ±1.0 °C
• Optics (measuring distance to spot ratio): 50:1
• Measuring distance: 50
• Measuring spot: 1
• Resolution: 0.1°C
• Relative humidity accuracy: ±2%
• Laser diode: Class 2 laser, 635 nm
• Frame buffer (number of images): >200
• Memory type: Internal memory
• Image file format: .jpg
• Data transfer: MicroUSB, Bluetooth™, Bluetooth™ Smart
• Shock protection: 1 m
• Supported Android devices: Smartphone with Android 4.0 or later, Tablet with Android 4.0 or later
• Supported iOS devices: iPad (3rd generation or later) newer), iPad Air (1st generation or newer), iPad mini (1st generation or newer), iPhone 4S or newer
• Display type: TFT LCD
• Display size: 2.8"
• Operating temperature from: -10°C
• Operating temperature up to: 50°C
• Operating temperature: -10 – 50°C
• Storage temperature from: -20°C
• Storage temperature up to: 70°C
• Storage temperature: -20 – 70°C
• Operating range from: 0.1 m
• Operating range up to: 5 m
• Operating range: 0.1 – 5 m
• LED laser color: red
• Laser class: 2
• Laser diode: 635 nm, < 1 mW

Includes

• 1 x GIS 1000 C
• 4 x 1.5 V (AA) alkaline
• 1 x 120 cm camera cable
• Batteries
• 1 x carrying bag
• 1 x user manual

Specifications

Specifications

Videos and Manuals

Manuals

• Bosch GIS1000C Infrared Scanner - Product Manual
