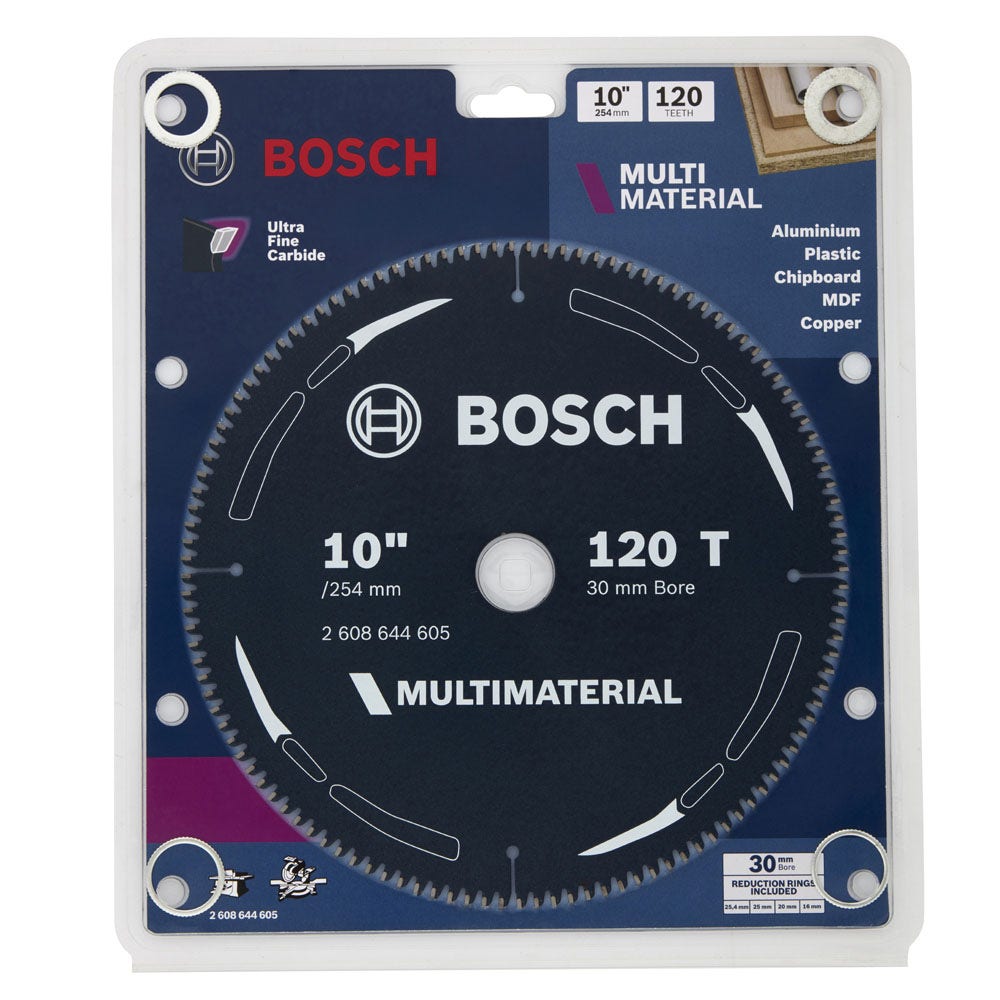

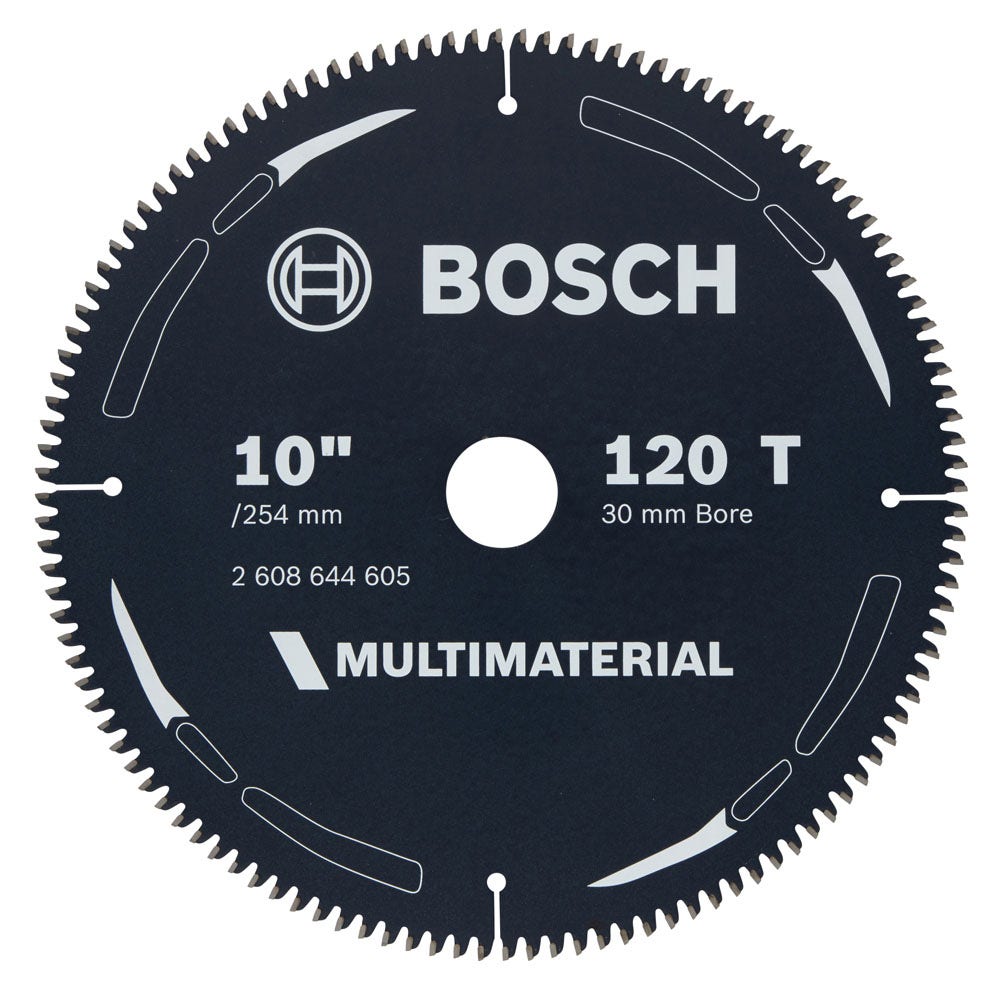

BOSCH 254 mm 120 teeth TCT circular saw blade for multi-purpose cutting - MULTIMATERIAL

Description

Description

BOSCH MULTIMATERIAL circular saw blades ensure exceptionally clean cuts in aluminum, plastic and epoxy resin, chipboard and MDF.

MULTIMATERIAL saw blades are characterized by precisely ground teeth made of high-quality tungsten carbide. The teeth are mounted in a hardened steel body with optimized negative rake angle geometry, ensuring exceptional cutting quality and long tool life.

They also feature a fully functional PTFE (polytetrafluoroethylene) coating. This coating reduces friction and heat during cutting, extending the blade's life. An additional benefit is that it protects the blade body from corrosion.

Features

• Functional PTFE blade coating - reduces friction during cutting and reduces gumming of the blade body
• Fully ground teeth - ensures clean and smooth cuts
• Negative tooth geometry with triple chip grind - allows cutting of non-ferrous metals and the design prevents clogging
• High quality cemented carbide - ensures long blade life
• Hardened steel body - allows precise and stable cuts

Technical data

• Blade diameter: 254 mm (10")
• Bore diameter: 30 mm
• Cut thickness: 2.7 mm
• Plate thickness: 2.0 mm
• Number of teeth: 120T
• Tooth Hook Angle: -5°
• Tooth Configuration: HLTCG (High-Low Triple Chip Grind)

Safety Information

• Maximum RPM: 6000
• Recommended Personal Protective Equipment:
• Safety Glasses
• Safety Gloves
• Hearing Protection
• Respiratory Protection

Material Suitability

• Aluminum and other non-ferrous metals
• Plastics and Epoxy Resin
• Particles Board
• MDF

Includes

• Reduction rings (x4):
• 30 mm to 25.4 mm (1")
• 30 mm to 25 mm
• 30 mm to 20 mm
• 30 mm to 16 mm

Specifications

Specifications

Specifications

Brand	Bosch
Part Number	2608644605
Barcode	3165140966139
Blade Diameter	254 mm
Bore	30.0 mm
Cut Thickness	2.7 mm
Plate Thickness (mm)	2 mm
Number of teeth	120
Tooth hook angle (°)	-5
Tooth configuration	HLTCG
