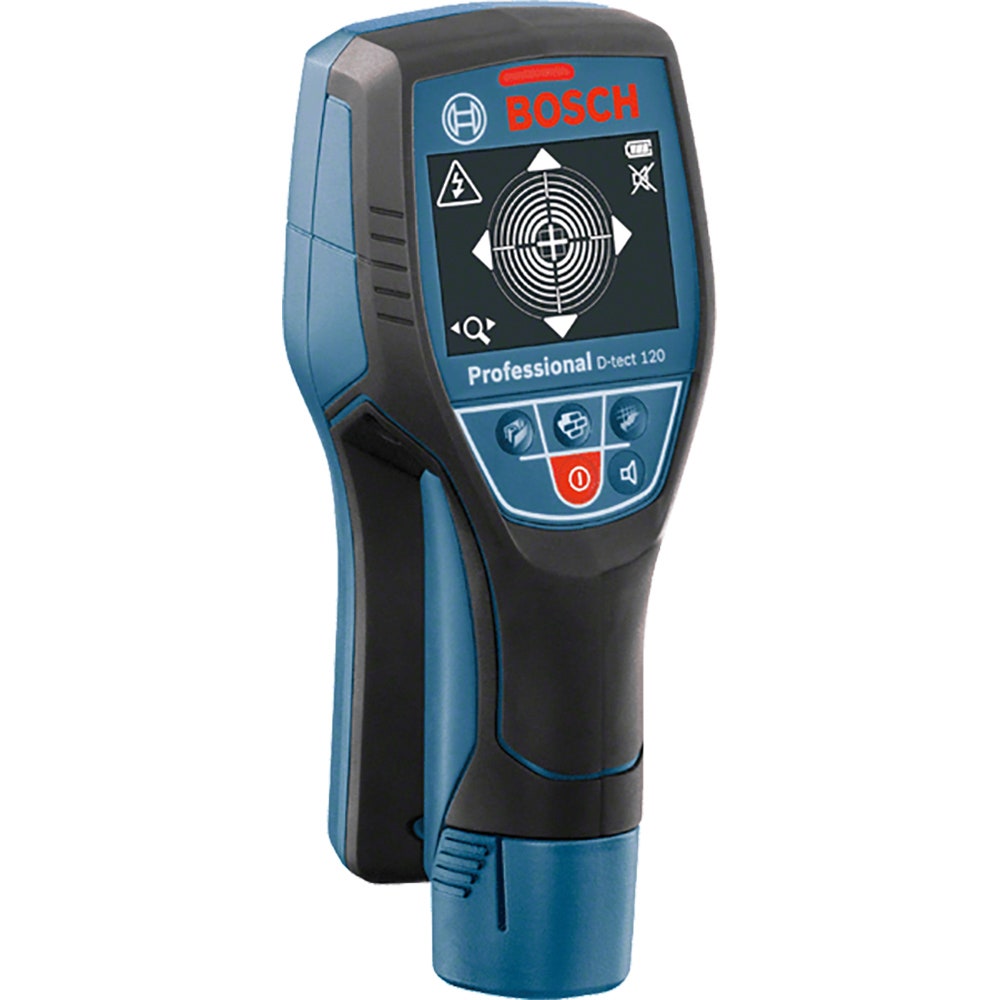

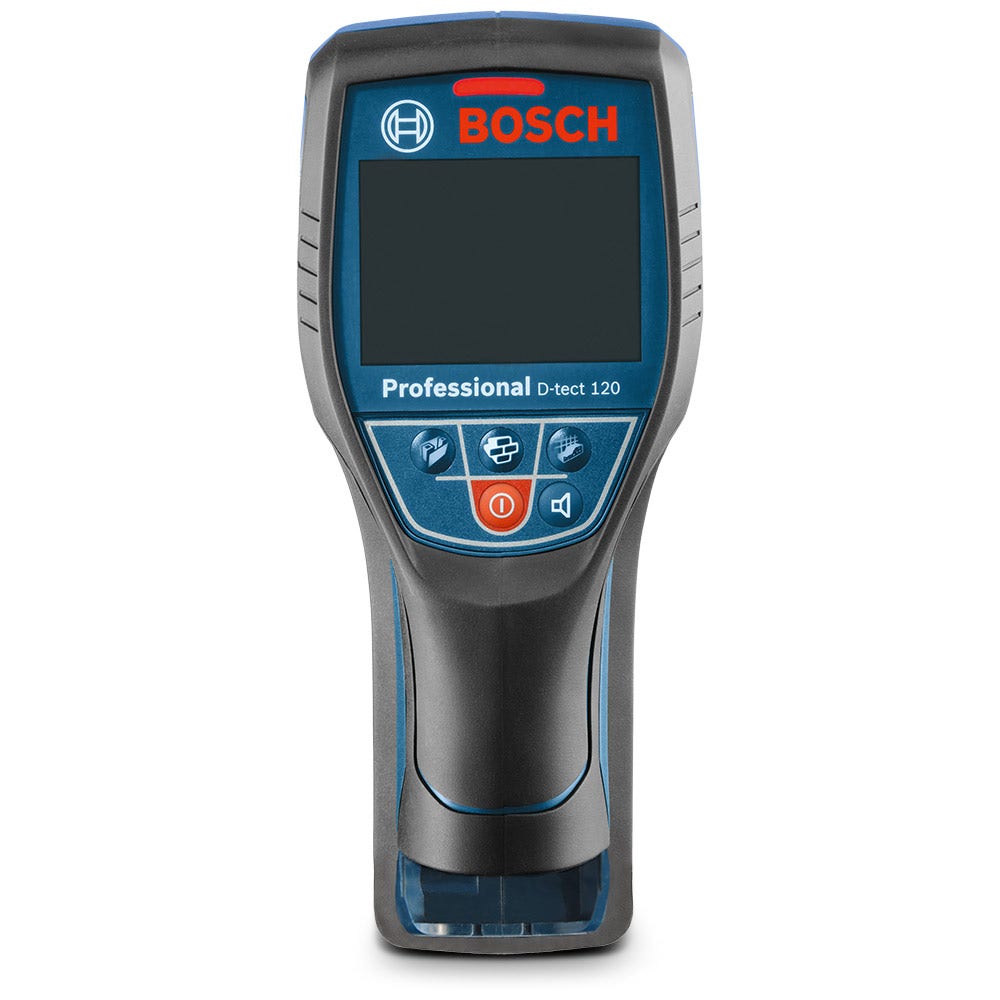

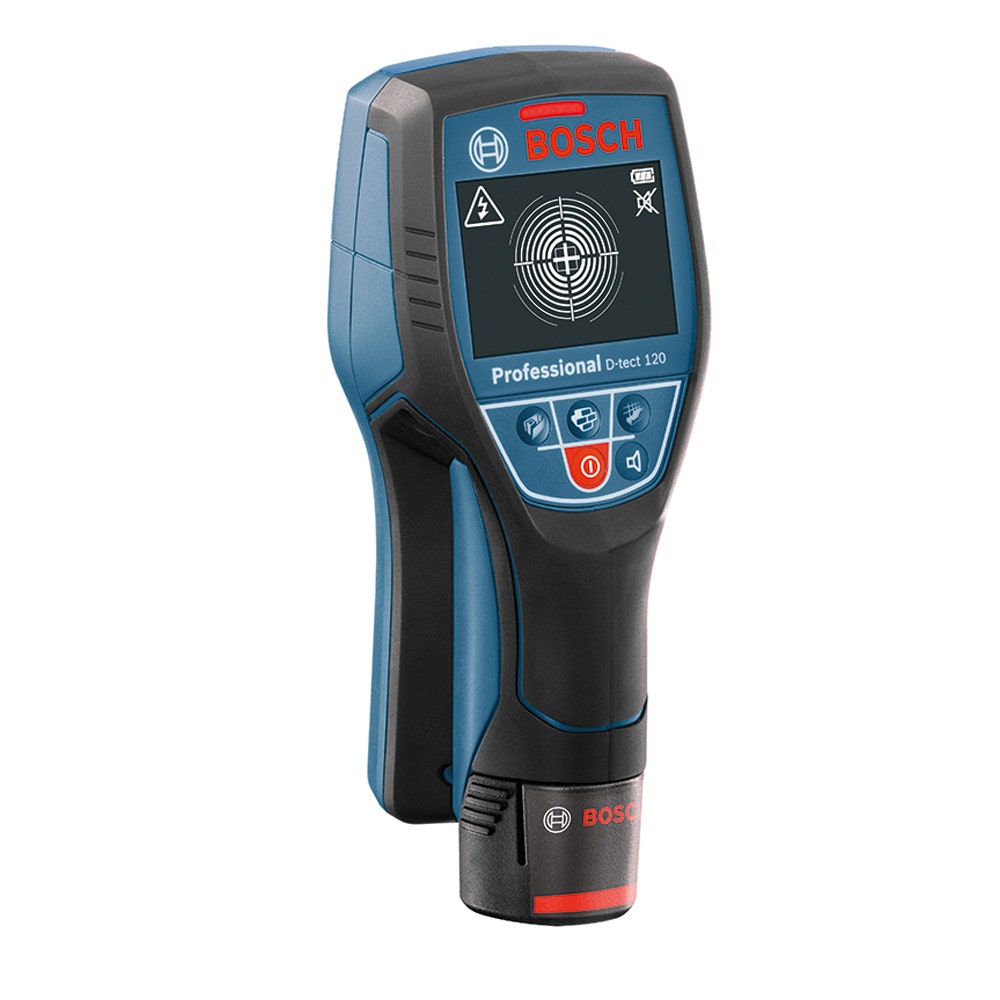

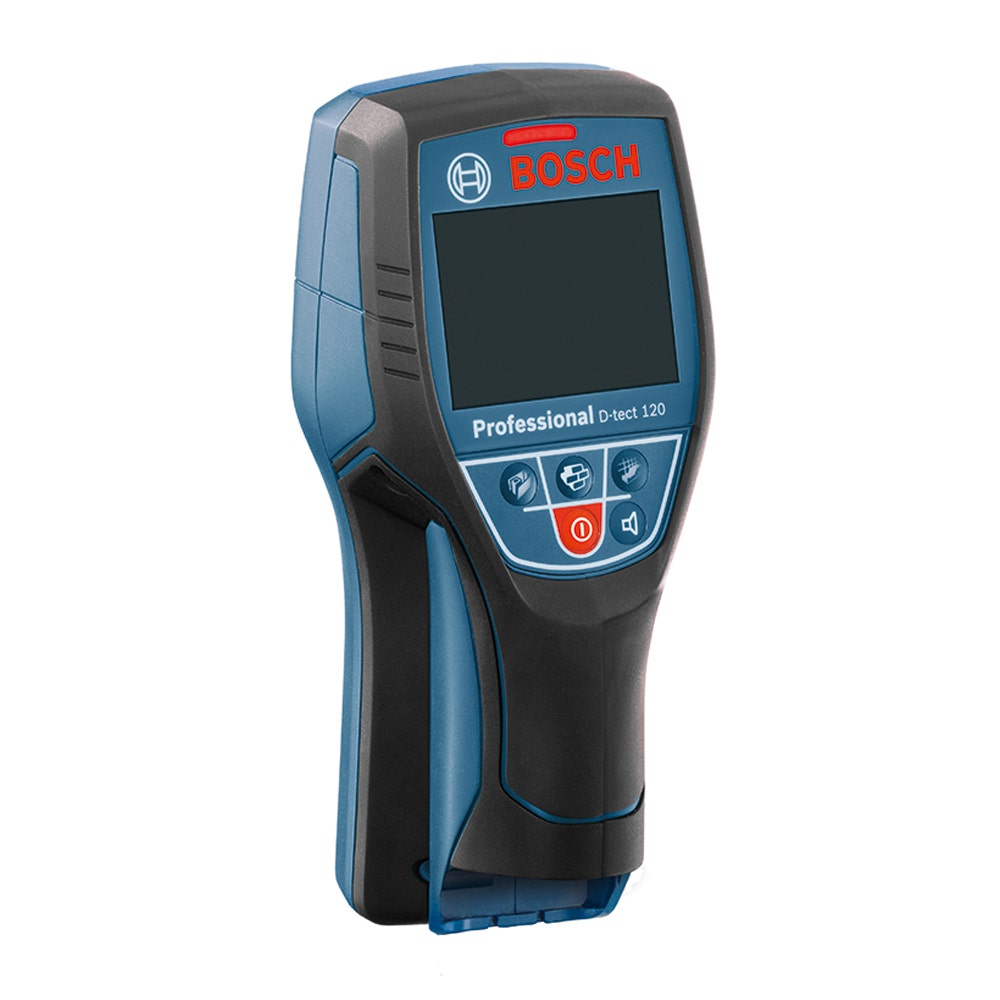

BOSCH D-Tect120 Universal Detector 06010813K0

Description

Description

The D-Tect 120 Professional detector is an intuitive radar scanner designed for almost all materials. Spot measurement ensures accurate detection in narrow surfaces, while the center finding function precisely indicates the center of the object. Additionally, Dual Power Source technology allows the use of both a 12V lithium-ion battery and standard alkaline batteries.

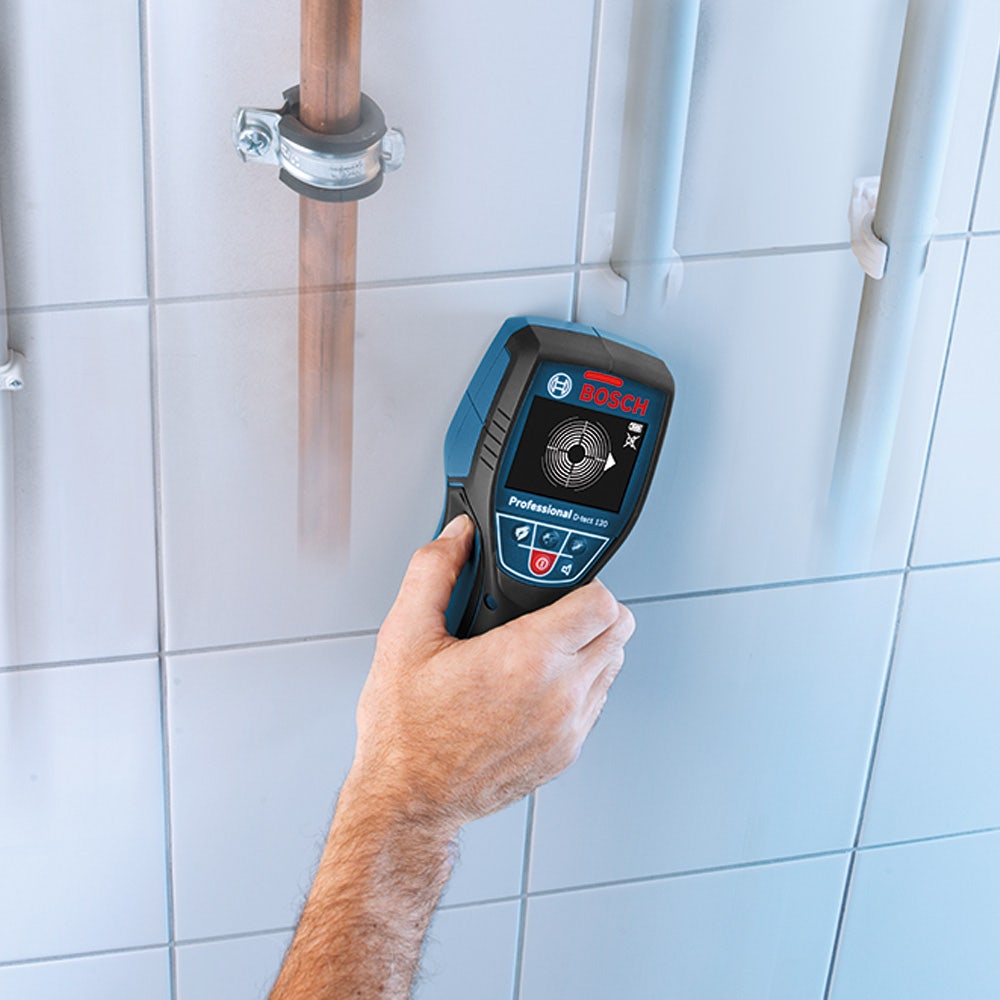

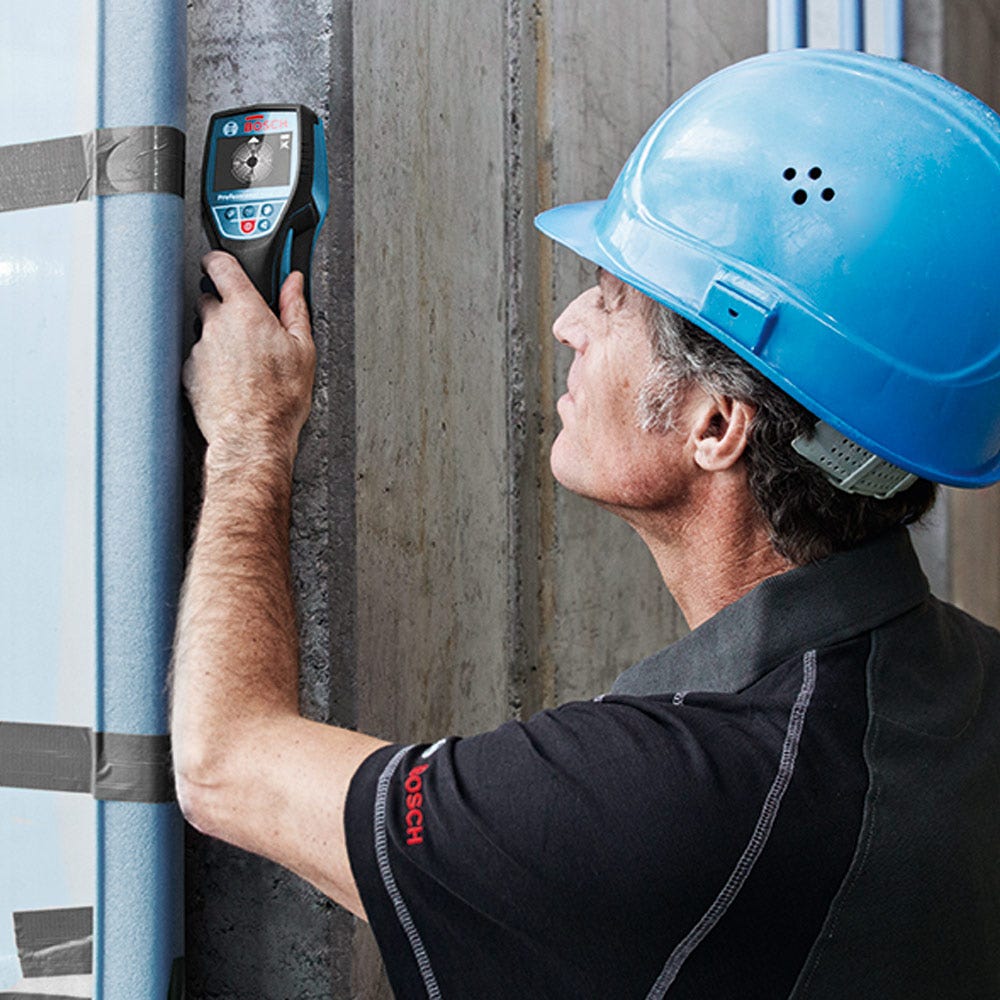

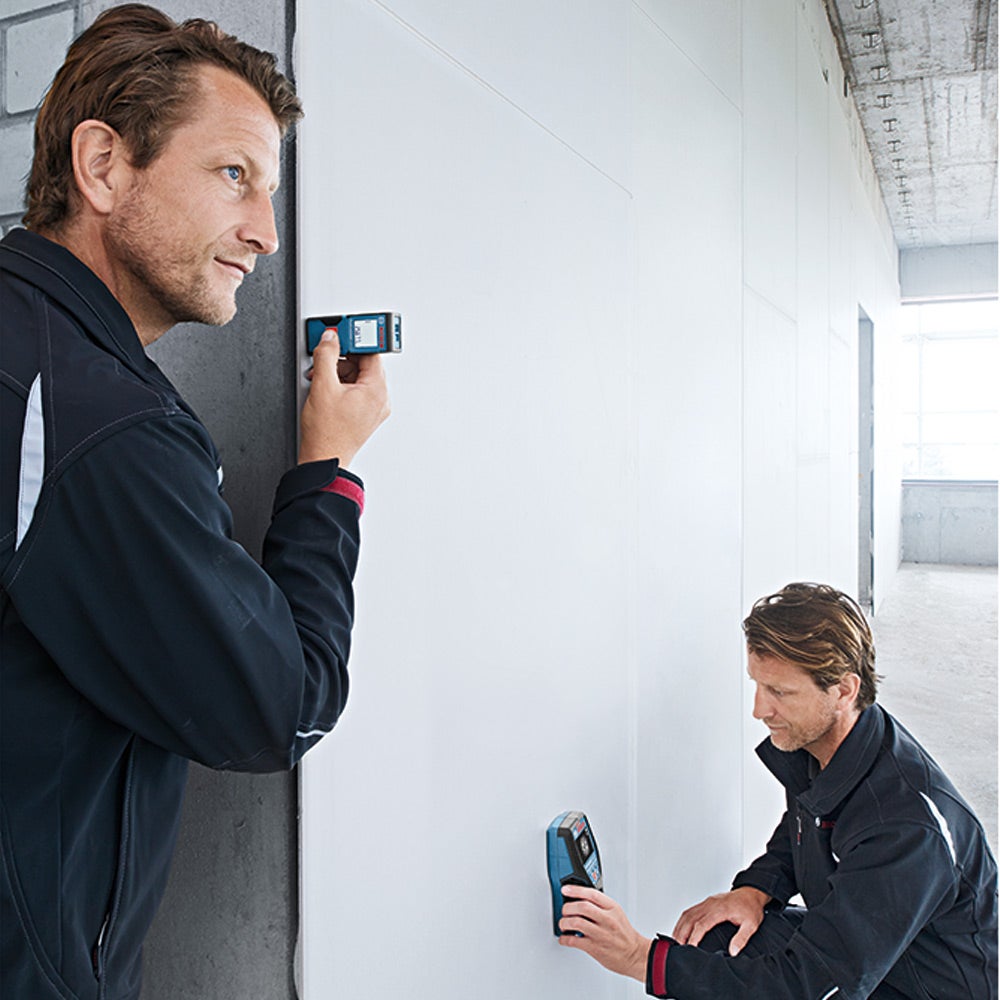

The device is suitable for a variety of craft disciplines for locating water-filled pipes and cables, as well as for avoiding drilling errors in carpentry, plumbing, electrical, and HVAC applications.

The D-tect 120 Professional features a simple user interface with three intuitive selection buttons that allow it to be adapted to various applications. The device can detect objects at a depth of up to 12 cm. Audible and visual signals notify the user when objects are detected in the wall.

Intuitive radar scanner for almost all materials.

• Spot measurement ensures accurate detection in narrow spaces.

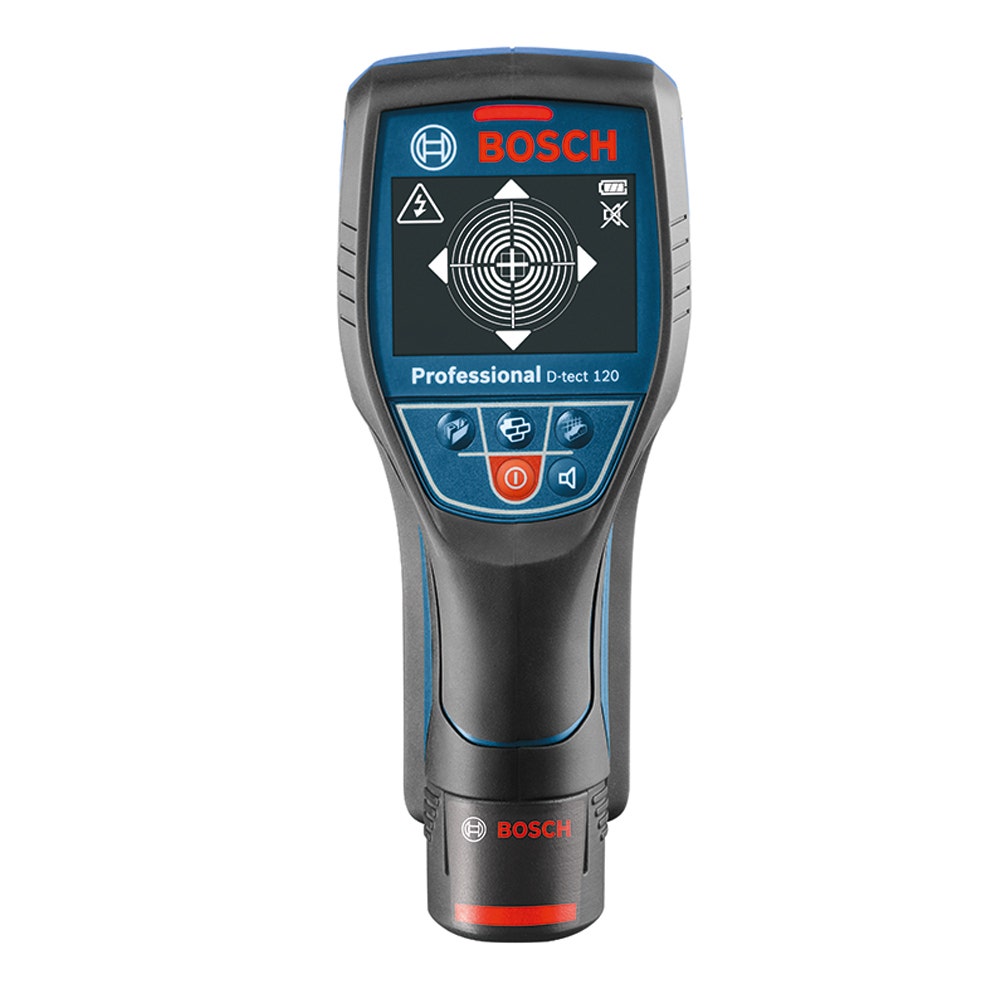

• Center finder provides visual cues to clearly pinpoint the exact center of an object.

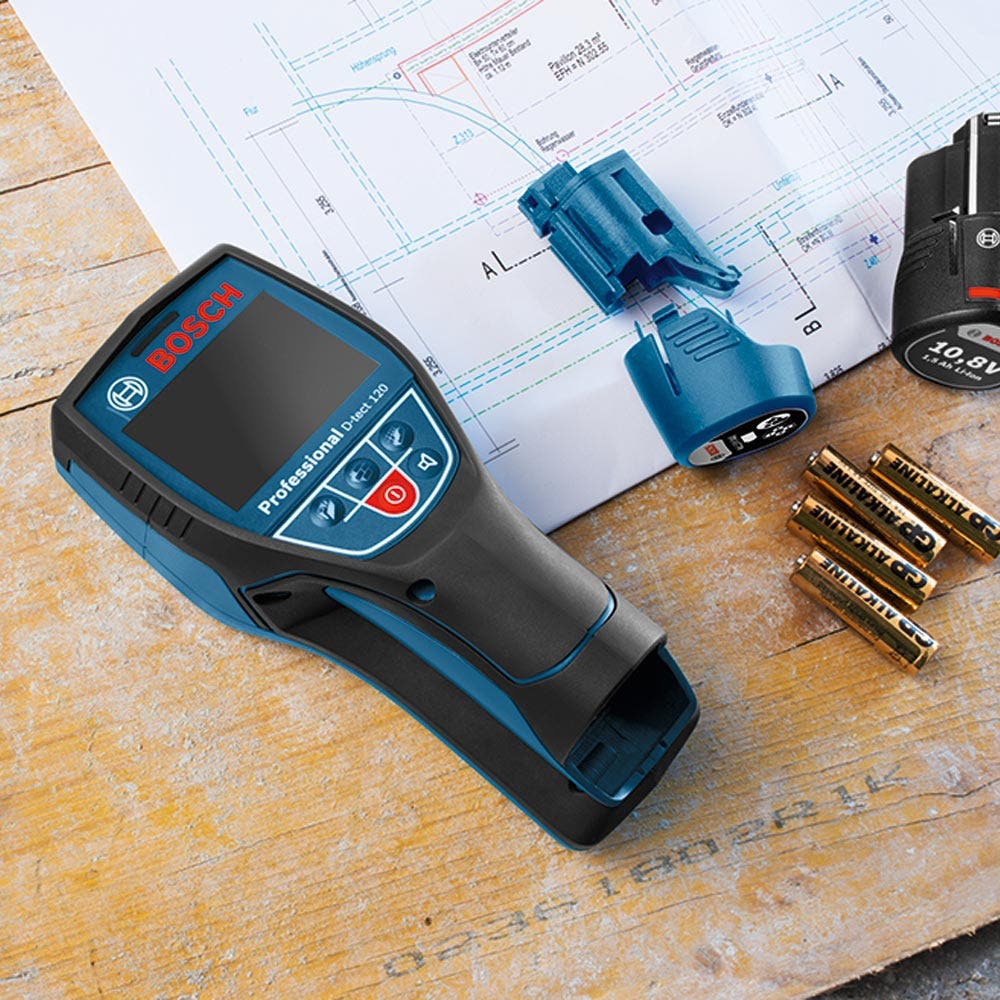

• Dual power source allows use with a 12V Lithium-ion battery or standard alkaline batteries.
• Reliable radar technology provides high accuracy on a wall, panel, or floor.
• No calibration required.
• Can detect in any direction.
• Three modes: drywall, universal, and concrete.
• Universal mode allows you to see more materials.
• Audible and visual warning signals when objects are detected in the wall.

Technical specifications:

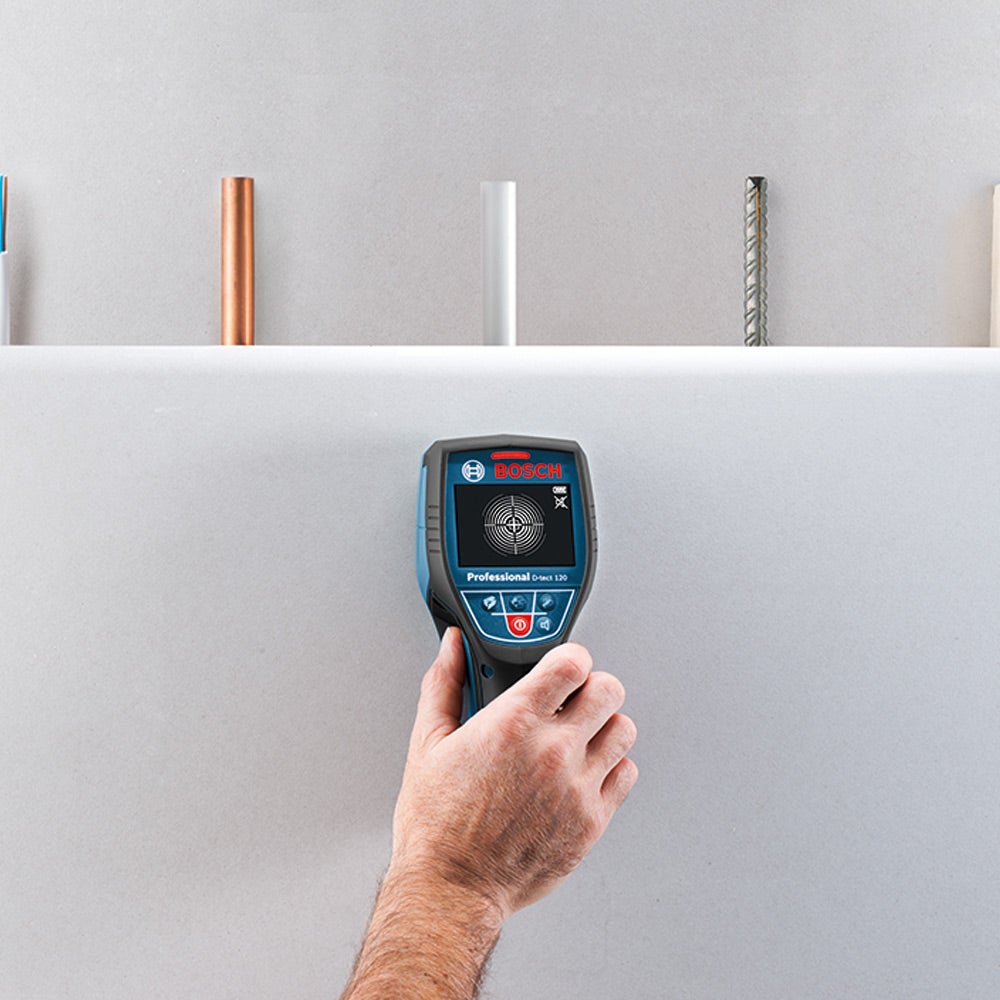

• Detectable materials: water-filled plastic pipes, ferrous metals, non-ferrous metals, wooden dowels, live cables.
• Max. Detection depth: 120 mm
• Detection depth, steel, max.: 120 mm
• Detection depth, copper, max.: 120 mm
• Detection depth of live cables, max.: 60 mm
• Detection depth of wooden substructures, max.: 38 mm
• Automatic shut-off, approx.: 5 minutes
• Power supply: 10.8 V Li-ion or 4 x 1.5 V LR6 (AA)
• Material: Plastic pipes (water-filled), Copper wires (live), Ferrous metals, Non-ferrous metals (copper)
• Detection depth, max.: 60 mm, 60 mm, 120 mm, 120 mm, 120mm, 60mm, 60mm
• Mode: Concrete, Plasterboard, Universal Mode
• Additional function: dual power supply (10.8V/4 x 1.5V LR6 AA); Center Locator with Object Direction Indicator
