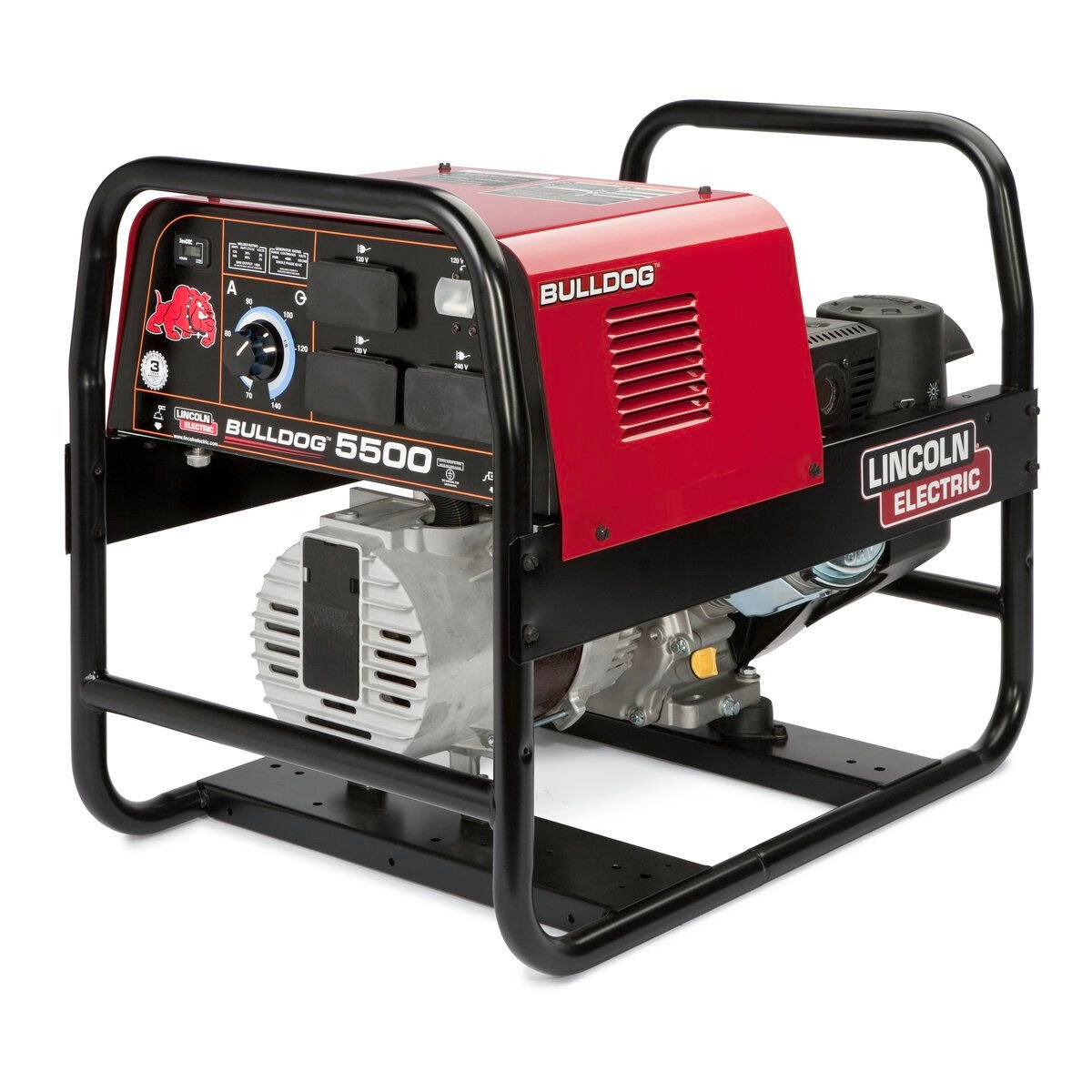

Bulldog 5500 Engine Driven Welder (Kohler)

Portable welder/generator with AC welding and AC generator output, great for home owners and hobbyists.

Features & Benefits

Portable AC Welder/AC Generator

It's great for homeowners and anyone who needs portable AC stick welding and AC generator power!

•  Low-Lift Grab Bars

• Extra protection against product damage.
• Best in class feature!

• 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
  •  Great for all-around sturdy protection.
  • Largest diameter tube frame in its class!
  •  Best in class feature!
•  AC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
  •  Up to 140 amps of AC output for many applications.
• 5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power
  •  Many uses! Grinder, work lights, pump, motor starting, or emergency power.
  •  Plug in a Lincoln POWER MIG 140C for wire welding.

  • Processes

    Stick

    Receptacles (qty.)

    3

    Model

    Bulldog 5500

    Weight (lb)

    198 LB

    Surge Watts (kW)

    5500

    Circuit Breakers

    Yes

    Cylinders

    1

    Digital Display

    No

    Dimensions (mm)(HxWxD)

    25.6" x 21.8" x31.5"

    Duty Cycle

    125A AC/20V/30% | 100A AC/25V/60%

    Engine Displacement (cc)

    277 cc

    Engine Type

    Kohler CH395

    Fuel Capacity (gal.)

    1.9 gal.

    Fuel Type

    Gasoline

    Horsepower

    8.9 HP @ 3600 RPM
    8.9

    Output Range

    70 - 140A AC
    70-140A

    Rated Watts (kW)

    4000

    Sound Level

    78.2 dBA at 23 ft.

    Start Type

    Manual Recoil with Automatic Compression Release

    Mode

    CC

    Polarity

    AC

    Rated Output

    125A AC/20V/30%
    100A AC/25V/60%

    Engine Type and Fuel Type

    Kohler
    CH395
    Gas

    Generator Continuous Power

    4000

    Generator Peak Power

    5500

    Speed

    3600

    Warranty

    See Limited Warranty

    Dimensions

    21.8in x 25.6in x 31.5in (553mm x 651mm x 800mm)

    Weight

    198lbs. (89.813kg)
