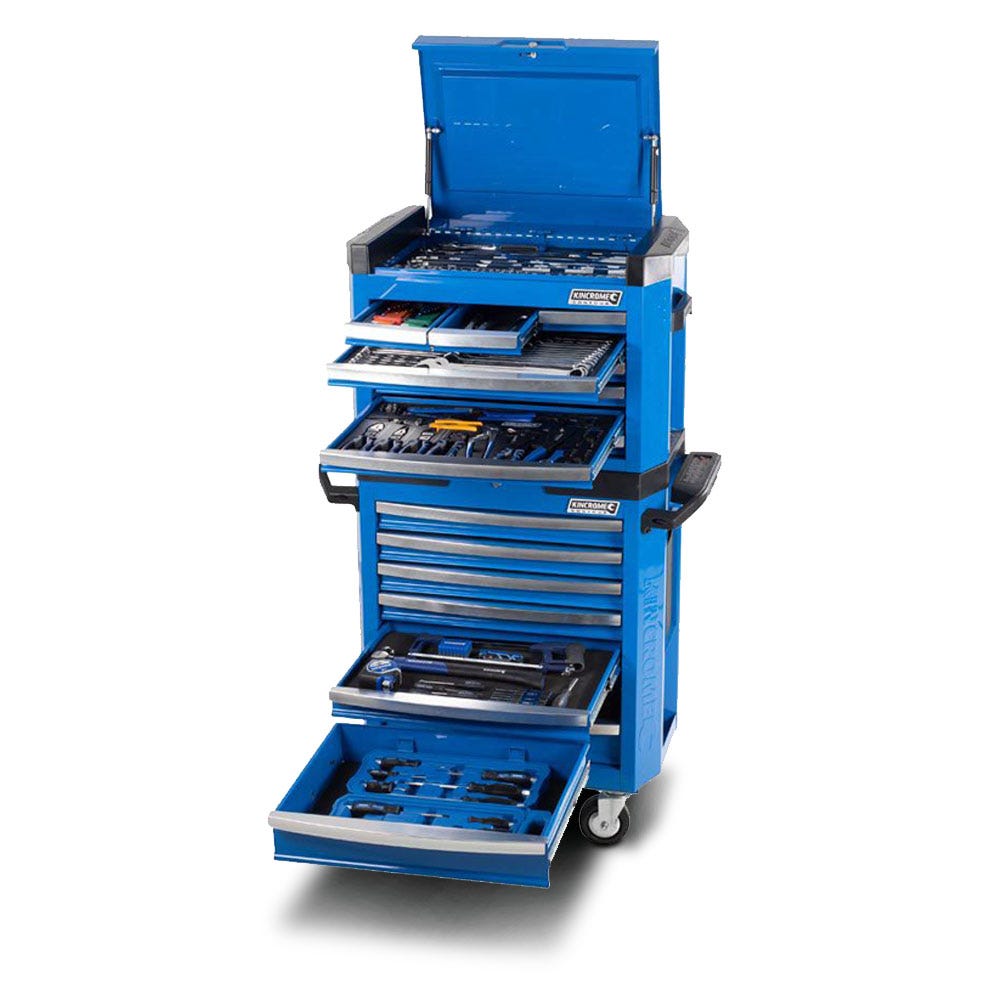

KINCROME Contour TFL Tool Chest Kit 242 Piece 15 Drawer w. Trolley - Blue P1805

Description

Description

The CONTOUR range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, 'Automatic Drawer Retention System (ADRS)' locking system, heavy duty 'Big Grip' side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26" standard, 28" & 29" extra deep, 42" extra wide and 60" super wide. CONTOUR is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

Top Tray - EVA567T 97 Piece LOK-ON Sockets and Accessories EVA Tray

Metric Sockets LOK-ON :

• 10 Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm
• 12 Sockets 3/8" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm
• 19 Sockets 1/2" Square Drive: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

Imperial Sockets LOK-ON :

• 9 Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
• 7 Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
• 15 Sockets 1/2"Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4"

24 LOK-ON Socket Accessories:

• 1/4" Square Drive:
  • Ratchet Handle Reversible Male
  • Universal Joint
  • Flex Handle 150mm (6")
  • Extension Bar 65mm
  • Extension Bar 165mm
  • Extension Bar 265mm
• 3/8" Square Drive:
  • Ratchet Handle Reversible Male
  • Universal Joint
  • Flex Handle 200mm (8")
  • Extension Bar 70mm
  • Extension Bar 175mm
  • Extension Bar 275mm
  • Adaptor 3/8" Female x 1/4" Male
  • Adaptor 3/8" Female x 1/2" Male
• 3 Spark Plug Sockets:
  • Spark Plug Socket 14mm (9/16)
  • Spark Plug Socket 16mm (5/8)
  • Spark Plug Socket 21mm (13/16)
• 1/2" Square Drive:
  • Ratchet Handle Reversible Male
  • Universal Joint
  • Flex Handle 375mm
  • Extension Bar 95mm
  • Extension Bar 155mm
  • Extension Bar 280mm
  • Adaptor 1/2" Female x 3/8" Male

EVA Tray Measurements: 570mm x 460mm x 30mm

Drawer 1 - EVA61T 36 Piece Hex Key EVA Tray

• Ball Point Hex Key Set Long Series 9 Piece Imperial:
  • 1/16" x 14 x 90mm, 3/16" x 28 x 160mm, 5/64" x 16 x 100mm, 1/4" x 32 x 180mm, 3/32" x 18 x 112mm, 5/16" x 36 x 200mm, 1/8" x 20 x 126mm, 3/8" x 40 x 224mm, 5/32" x 25 x 140mm
• Ball Point Hex Key Set Long Series 9 Piece Metric:
  • 1.5 x 14 x 90mm, 5.0 x 28 x 160mm, 2.0 x 16 x 100mm, 6.0 x 32 x 180mm, 2.5 x 18 x 112mm, 8.0 x 36 x 200mm, 3.0 x 20 x 126mm, 10.0 x 40 x 224mm, 4.0 x 25 x 140mm
• Tamperproof TORX Set Long Series 9 Piece:
  • T10H x 14 x 90mm, T30H x 28 x 160mm, T15H x 16 x 100mm, T40H x 32x 180mm, T20H x 18 x 112mm, T45H x 36 x 200mm, T25H x 20 x 126mm, T50H x 40 x 224mm, T27H x 25 x 140mm
• TORX Set Long Series 9 Piece:
  • T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm

EVA Tray Measurements: 130mm x 395mm x 30mm

Drawer 2 - EVA558T 30 Piece Combination Spanners EVA Tray

Metric Combination Spanners:

• 17 Combination Spanners: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24

Imperial Combination Spanners:

• 13 Combination Spanners: 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1

EVA Tray Measurements: 540mm x 395mm x 30mm

Drawer 3 - EVA562T 15 Piece Pliers & Riveter EVA Tray

• X-Force Combination Pliers 200mm (8")
• X-Force Diagonal Cutting Pliers 200mm (8")
• X-Force Long Nose Pliers 200mm (8")
• Multi-Grip Pliers 250mm (10")
• Mini Bolt Cutter 200mm
• Compact Hand Riveter
• Nut Riveter
• Automatic Wire Stripper
• Deluxe Crimping Wire
• Combination Circlip Pliers Set 5 Piece
• Straight Cut Tin Snips

EVA Tray Measurements: 540mm x 395mm x 30mm

Loose Items:

• Heavy Duty Hack Saw
• Folding Utility Knife
• Xtenda Tape Measure 8m
• Ball Pein Hammer 24OZ
• Adjustable Wrench 250mm (10")
• Lock Grip Plier 250mm (10")
• 4 Piece Mini Hook & Pick Set
  • AWL: 129mm
  • Pin Remover: 115mm
  • L hook: 115mm,
  • V hook: 125mm
• 33 Piece Security Bit Holder Set
  • 1/4"(F) x 1/4"(M) Magnetic bit holder
  • 3 MORTORQ Bits: #6, #8 & #10mm
  • 4 Spanner Bits: 4, 6, 8 & 10mm
  • 4 Tri-wing Bits: 1, 2, 3 & 4
  • 6 Hexagonal Security Bits: 2, 2.5, 3, 4, 5 & 6mm
  • 6 Hexagonal Security Bits: 5/32, 9/64, 1/8, 7/64, 3/32 & 5/64"
  • 9 Tamperproof TORX Bits: T8, T10, T15, T20, T25, T27, T30, T35 & T40
• 6mm Hex Bit Holder 1/4" Drive
• 6 Piece Precision Screwdriver set
  • Blade: 1.4mm, 2.0mm, 2.4mm, 3.0mm
  • Phillips: No.0, No.1
• 12 Piece 'Go Through' Screwdriver Set
• 6 Screwdrivers - Blade:
  • 3.2mm x 75mm, 6mm x 38mm - Hex 13mm Shaft,
  • 5mm x 75mm - Hex 11mm Shaft,
  • 6mm x 100mm - Hex 13mm Shaft,
  • 8mm x 150mm - Hex 15mm Shaft,
  • 9.5mm x 200mm - Hex 15mm Shaft
• 6 Screwdrivers - Phillips:
  • No.0 x 75mm, No.2 x 38mm - Hex 13mm Shaft,
  • No.1 x 75mm - Hex 11mm Shaft,
  • No.2 x 100mm - Hex 13mm Shaft,
  • No.3 x 150mm - Hex 15mm Shaft,
  • No.4 x 200mm - Hex 15mm Shaft

Specifications

• Drawers: 15
• Size: 29""
• Tray Type: Ethylene-Vinyl Acetate (EVA)
• Tool Chest Measurements: 745 x 475 x 485mm
• Tool Trolley Measurements: 745 x 475 x 940mm
• Castor Size: 5"" x 2""
• Finish: UV Stabilised Powder Coat
• Material: Heavy Gauge Steel
