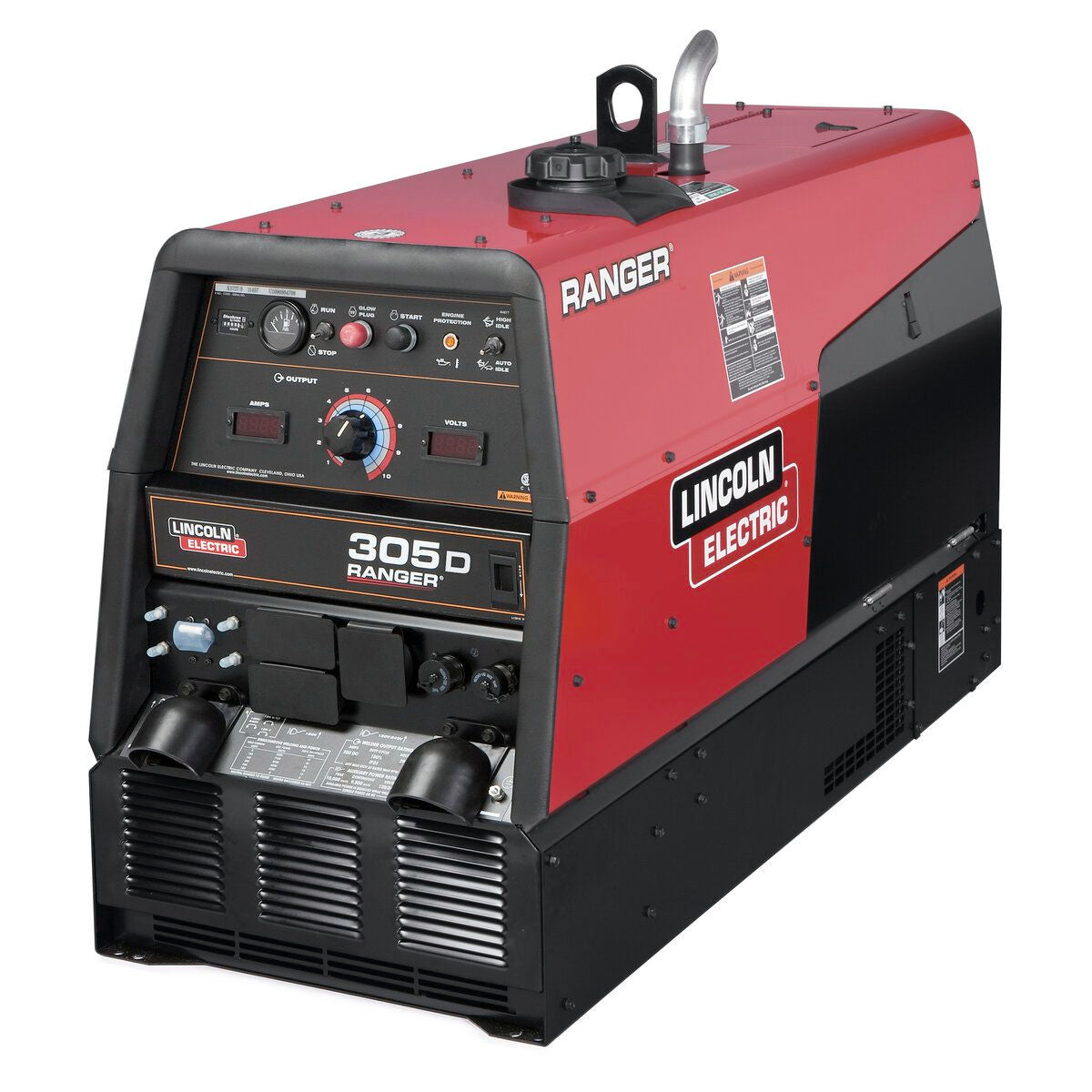

Ranger 305 D (Kubota)
A high speed, welder/generator capable of up to 305 amps of DC multi-purpose welding and 120/240 VAC single phase auxiliary power. Powered by a 18.8 hp Kubota D722 diesel engine and features patented Chopper Technology.
Choose the Ranger 305 D for extended fuel efficiency and compatibility with diesel-powered fleets. The small footprint offers up to 305 amps of multi-process welding output and 10 kW single-phase AC power for motor starting, tools, and inverter welders for extended range and process capability.
Processes
Stick, TIG, MIG, Flux-Cored
Mode
CC/CV
Polarity
DC
Output Range
20-250A TIG
14-29V CV
20-305A DC
40-300A Pipe
Rated Output
300A DC CV/29V/100%
305A DC CC/29V/100%
Engine Type and Fuel Type
Kubota
D722 EPA Tier 4
Diesel
Generator Continuous Power
9500
Generator Peak Power
10000
Horsepower
18.8
Speed
3600
Dimensions
21.5in x 29.9in x 52.3in (546mm x 759mm x 1327mm)
Weight
698lbs. (316.613kg)
