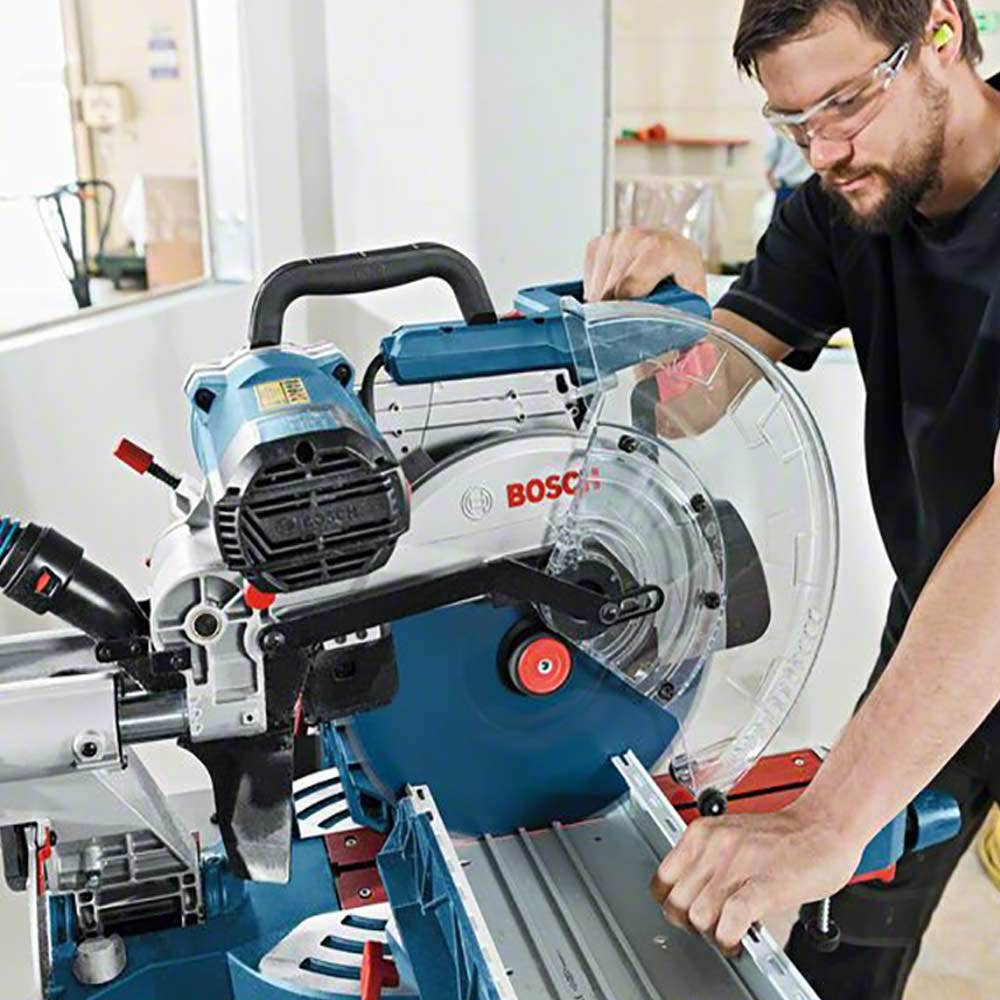

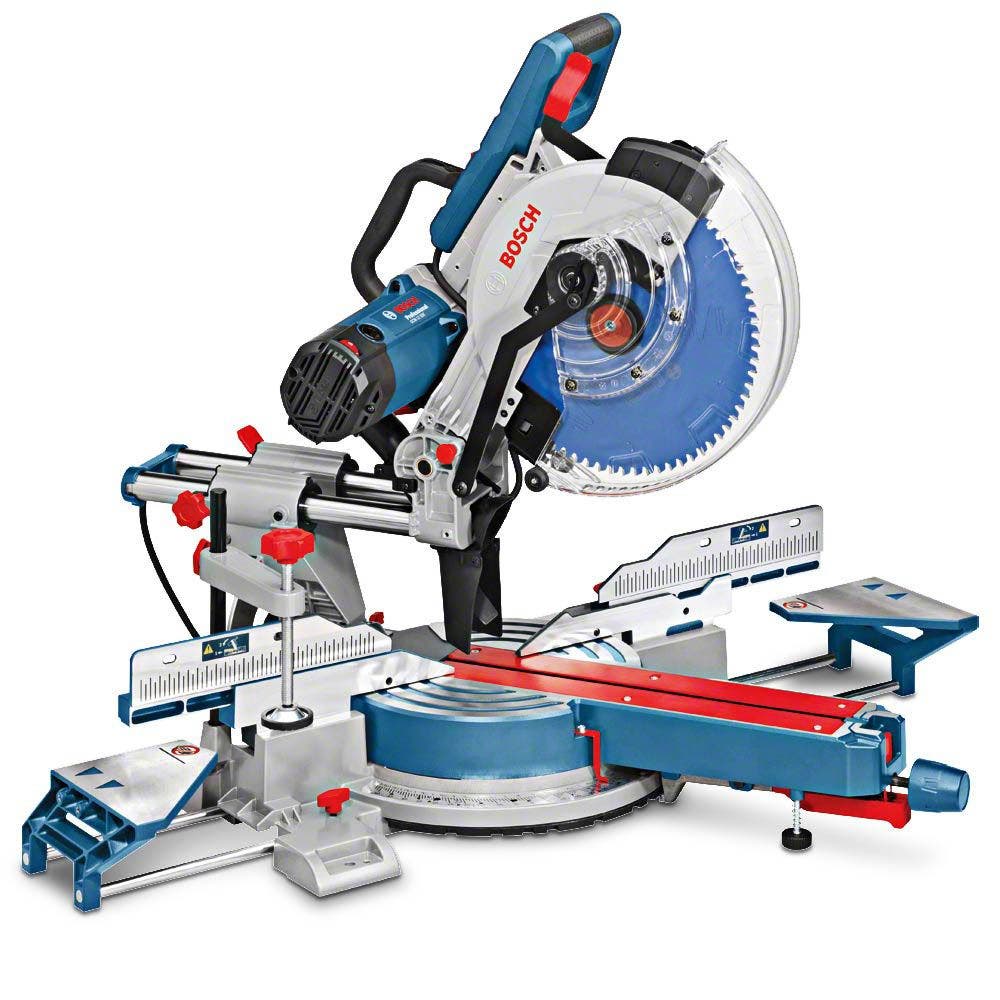

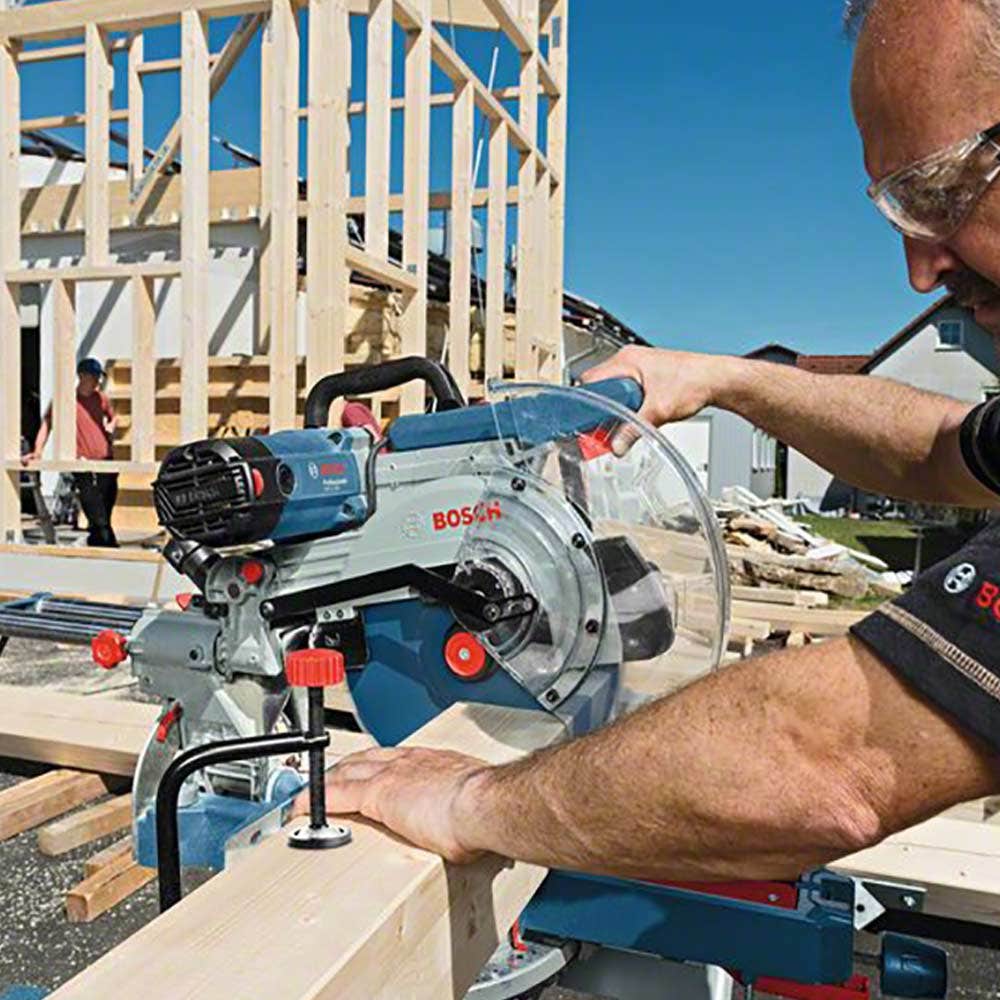

BOSCH 1800W 305mm GCM12SDE Mitre Saw

Description

Description

High cutting capacity and variable speed for a wide range of applications

• Vertical cutting capacity 120mm
• Variable speed to adapt the cutting speed to the material
• SDS blade change
• Speed pre-selection 3100 – 4000 rpm
• Intuitive tilt angle lock
• Integrated table extensions to support the material
• Easy blade change
• Tilt angle adjustment up to 47° on both sides

Data Technical Specifications:

• Cutting Capacity, 0° 85 x 370 mm
• Cutting Capacity 0° with spacer (max. vertical) 120 x 200 mm
• Cutting Capacity 0° with spacer (max. horizontal) 70 x 400 mm
• Cutting Capacity, Mitre 45° 85 x 250 mm
• Cutting Capacity, Inclined 45° 60 x 360 mm
• Mitre Setting 52° L / 60° R
• Bevel Setting 47° L / 47° R
• Tool Dimensions (Width x Length x Height) 860 x 600 x 530 mm
• No Load Speed 3100 – 4000 rpm
• Saw blade diameter 305 mm
• Saw blade bore diameter 30 mm
• Weight 28.6 kg
• Rated power 1800 W

Noise/Vibration:

• Sound pressure level 92 dB(A)
• Sound power level 105 dB(A)
• Measurement uncertainty K 3 dB

Sawing wood:

• Vibration emission value ah 2.5 m/s²
• Measurement uncertainty K 1.5 m/s²
