BOSCH GTC 600 C Thermal Imaging Camera 06010835K0

Description

Description

The rugged GTC 600 C is drop-proof from a height of 2 m, has an IP54 protection class, and can be used on construction sites even in the harshest conditions. Additionally, 12 V lithium-ion batteries give the device exceptional runtime. Documenting and sharing measured values is easy with the appropriate Bosch app, thanks to the Simple Exchange data transfer function. This thermal imaging camera offers a high accuracy of ±2.0°C* and a wide temperature range of -20°C to +600°C.

Detect temperature differences quickly and easily, even outdoors – the Bosch GTC 600 C Professional thermal imaging camera offers detailed visualization of temperature differences and enables intelligent documentation. Its high thermal resolution and wide measurement range allow for use in a wide range of applications. Convenient voice annotation, the Bosch Thermal app, and GTC Transfer software make it easy to document thermal images. An intuitive user interface and seamlessly integrated features, such as emissivity presets and an enhanced gallery with infrared and visible images, ensure satisfactory results with a minimum of clicks.

Hardware and Applications This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Technical Specifications

• Battery Voltage: 12.0 V
• Measurement Range*: -20°C to +600°C
• IR Measurement Accuracy*: ±2.0°C* (*plus usage-dependent deviation)
• Resolution: 0.1
• Thermal Sensitivity (NETD): <=50 mK
• IR Sensor Size: 256x192 px
• Number of Measurement Points: 49 152
• Field of View (FOV): 45x35°
• Power Supply and Operating Time: GBA 12V 2.0Ah 6 hours
• Frame Buffer (Number of Images): 600
• Image File Format: .jpg
• Data Transfer: Wi-Fi, USB-C
• Dust and Splash Protection*: IP54** (**excluding Li-ion Battery)
• Supported Android Devices: Smartphone with Android 6.0 or later, Tablet with Android 6.0 or later
• Supported iOS Devices: iPad with iOS 11 or later, iPhone with iOS 11 or later
• Display Size: 3.5"
• Operating Temperature: -10 – 45°C
• Storage Temperature: -20 – 50°C
• Minimum Focus Distance: 0.3
• Thermal Image Refresh Rate: 9
• Frame Buffer (Number of Images, Each with Audio): 350
• Audio File Format: .wav

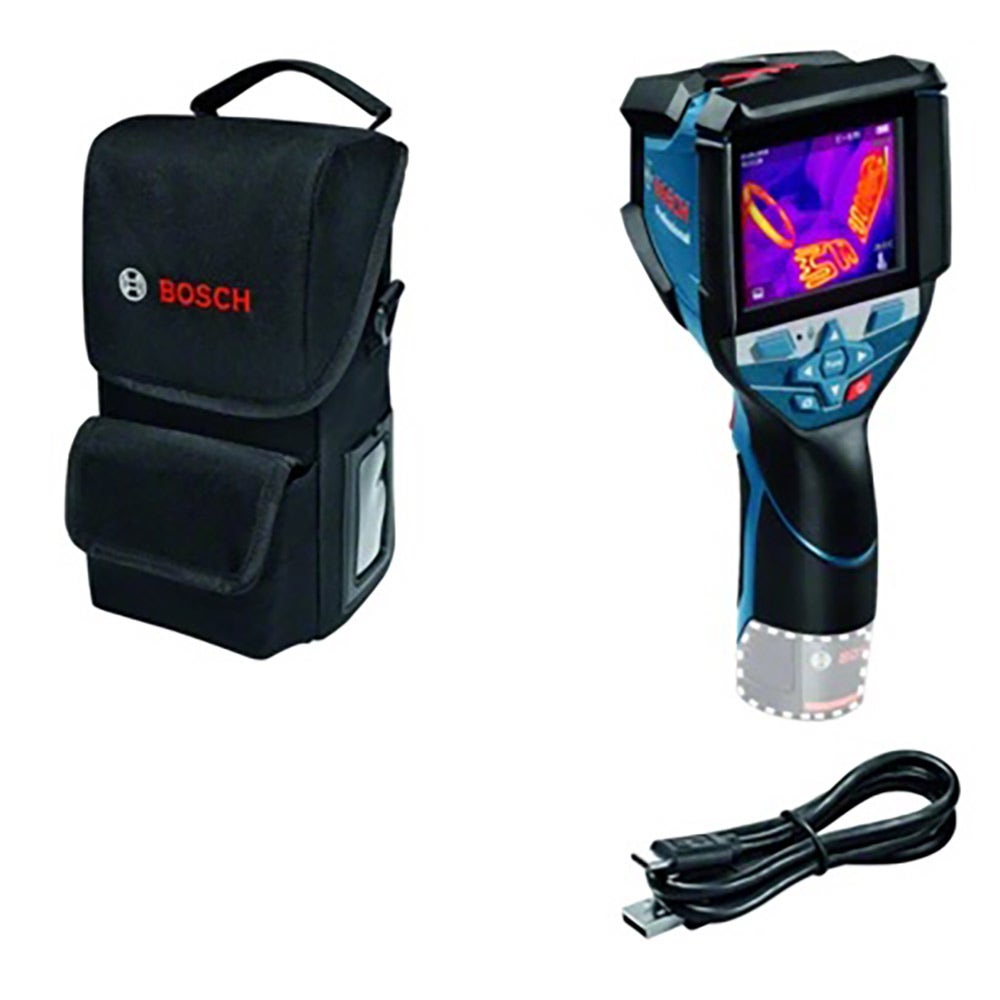

Includes

• Micro USB Cable
• Carrying Bag
