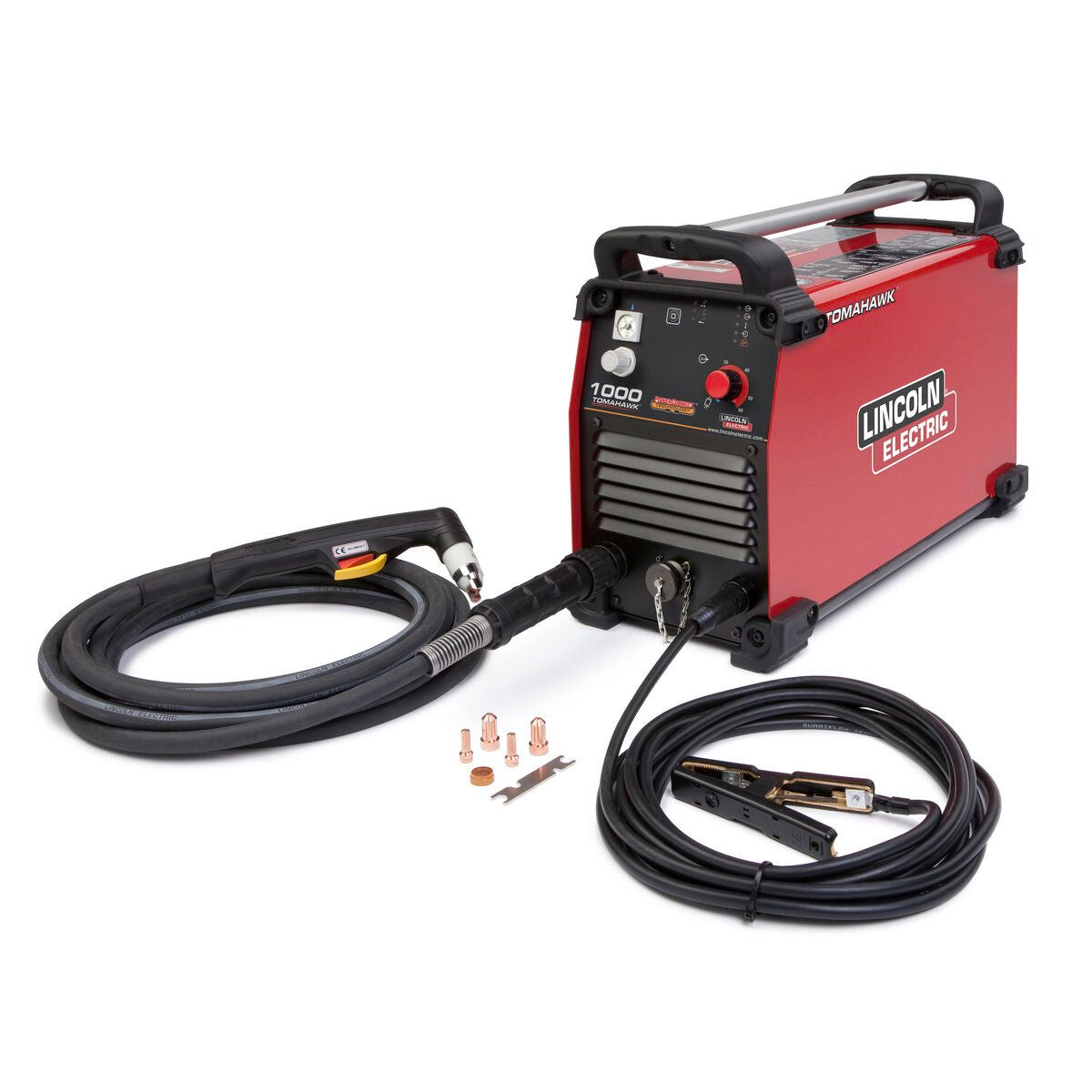

Tomahawk 1000 Plasma Cutter with 25 ft (7.6 m) Hand Torch

The Tomahawk 1000 plasma cutting system is ideal for plasma cutting and gouging materials including mild steel, brass, stainless steel, copper, and aluminum.

Features & Benefits

Plasma Cutting for Production Capacity

The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.

Features

• PowerConnect Technology - Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.
• Continuous Output Control - Focus the arc for different material thicknesses.
• Touch Start  System - Reliable plasma arc initiation without high frequency.
• Front Panel Purge Control - Makes it easy to set the air flow rate without initiating the plasma arc.
• Cool Operation, Long Consumable Life- New electrode and nozzle design save you money in the long run
• Added Safety - Our Parts-in-Place  - System detects correct installation of consumables and torch.
• Engine Drive Compatible - Select a Lincoln Electric Ranger or Vantage to power your Tomahawk in remote locations.
• Optional Machine Torch - Available for use on CNC plasma cutting tables.

Processes

Plasma Cutting & Gouging

Air Pressure Required

87-109 PSI

Compressor Included

No

Digital Display

No

Dimensions (mm)(HxWxD)

15.2" x 8.5" x 22.1"

Duty Cycle

50% 60A@104V | 100% 40A@96V

Included in Package

LC65 hand torch 25 ft. (7.5 m) cable; Air regulator and pressure gauge; Internal water separator; Work clamp and cable; Spare consumables; Input power cord

Model

Tomahawk 1000

Weight (lb)

45 LB

Input Power

208-575/1/3/50/60

Input Current

37.8A

Polarity

DC

Output Range

20-60A

Rated Output

40A@96V 100%|60A@104V 50%

Typical Application

On-site maintenance; Service tasks; Construction sites; Demolition work; Rental; Production/Fabrication; Robotic plasma cutting

Maximum Cut

1 in. (25.4 mm)

Recommended Cut

3/4 in. (19.01 mm)

Severance Cut

1 1/4 in. (31.75 mm)

Dimensions

8.5in x 15.2in x 22.1in (215mm x 385mm x 561mm)

Warranty

3 year warranty

Weight

70lbs. (31.752kg)

• Pilot Current: 20A
• Air Pressure Required: 87 - 109 psi (6 -7.5 Bar)
• Air Flow Rate: 80 psi @ 275 - SCFH, 5.5 Bar @ 130 Liters / min.
• LC65 hand torch and 25 ft. (7.5 m) cable with electrode | nozzle 60A | swirl ring | retaining cap | drag spacer, Air regulator and pressure gauge, Internal water separator, Work clamp and cable, Spare consumables include (2) electrodes | (2) nozzles | (1) swirl ring, Input power cord
